Product Detailed Parameters
- Description：LINE FILTER 125VDC 3A PANEL MNT
- Series：5003
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：125V
- Voltage - Rated AC：-
- Current：3:00 AM
- Frequency - Operating：-
- Applications：Signal
- Approval Agency：cURus, ENEC, UL, VDE
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Panel Mount
- Termination Style：Quick Connect
- Inductance：4mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

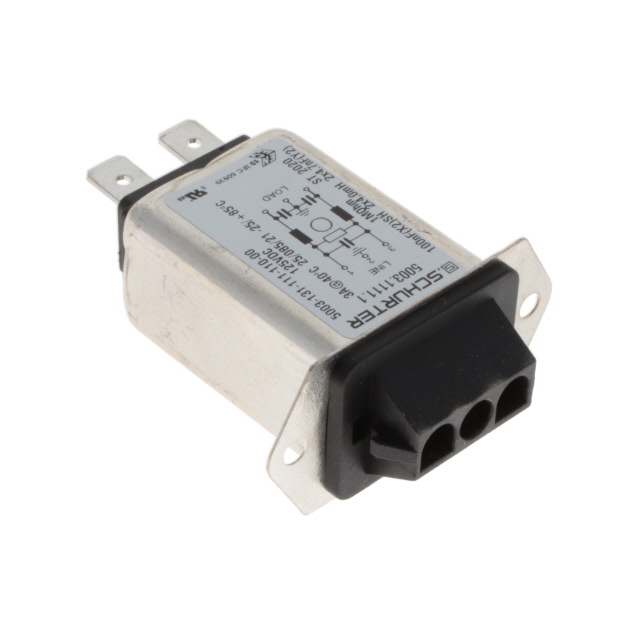

The SCHURTER 5003.1111.1 is a single-phase EMC/EMI line filter module designed for power line noise suppression. It features a current rating of 3 A and operates at a voltage of 125 V AC. The component utilizes a single-stage filtering architecture to attenuate electromagnetic interference. Electrical connections are established via quick connect terminals, facilitating integration into compact electronic assemblies.
Feature Summary
- Single-stage electromagnetic interference attenuation
- Quick connect terminal interface for simplified wiring
Applications
- Power supply input stages
- Consumer electronics equipment
- Industrial control modules
Procurement Notes
Verify the specific electrical ratings against the official datasheet before implementation. Confirm that the quick connect terminal type matches the system wiring requirements. Ensure the operating environment remains within the specified voltage and current limits to maintain compliance and safety standards.
Selection Notes
Select this component when single-phase noise suppression is required for low-current applications. The quick connect interface suits designs prioritizing assembly speed. Verify compatibility with the target circuit's voltage and current specifications prior to final selection.
Part Context
This component belongs to Schurter's power line filter module portfolio. These modules provide essential EMI/EMC protection for sensitive electronic circuits. The product series focuses on compact solutions for integrating noise filtration directly into power entry points.
FAQ
What is the maximum current rating?
The maximum current rating is 3 A.
What type of terminals does it use?
It uses quick connect terminals for electrical connection.
