5003.1131.1

Overview

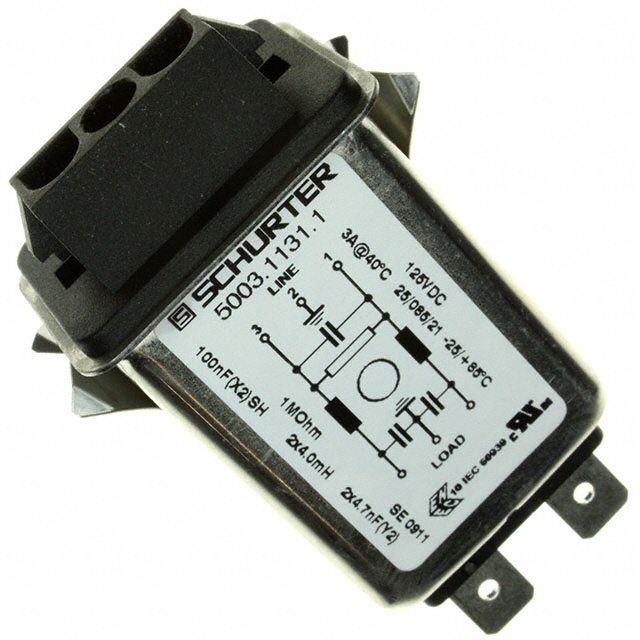

The SCHURTER Inc. 5003.1131.1 is a single-phase AC power entry module designed for panel mounting applications. It features integrated EMC/EMI filtering and utilizes quick-connect terminals for circuit attachment. The unit supports a rated current of 3 A and operates at voltages up to 125 V DC. This component provides essential line filtering within a compact form factor suitable for direct installation into equipment enclosures.

Feature Summary

• Integrated single-stage EMC/EMI line filtering
• Quick-connect terminal interface for PCB attachment
• Panel mount construction with C14 receptacle

Applications

• Single-phase AC power input stages
• Equipment requiring EMI suppression
• Panel-mounted power entry points

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with Schurter or authorized distributors before procurement. Confirm that the 125 V DC rating aligns with your system's electrical requirements, as this module is specified for single-phase applications. Ensure panel cutout dimensions match the physical specifications provided in the official documentation.

Selection Notes

Select this module when a combined power inlet and filter solution is required for low-current applications. The quick-connect termination style simplifies assembly compared to soldered alternatives. Verify that the 3 A current rating meets the load requirements and that the 125 V DC voltage limit is sufficient for the intended DC bus or rectified output configuration.

Part Context

This component belongs to the SCHURTER 5003 series of AC power entry modules. These units are engineered to provide both power connection and noise suppression in a single device. The series typically includes variants with different current ratings and filter configurations to accommodate various industrial and commercial power supply designs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
