5003.115B.1

Overview

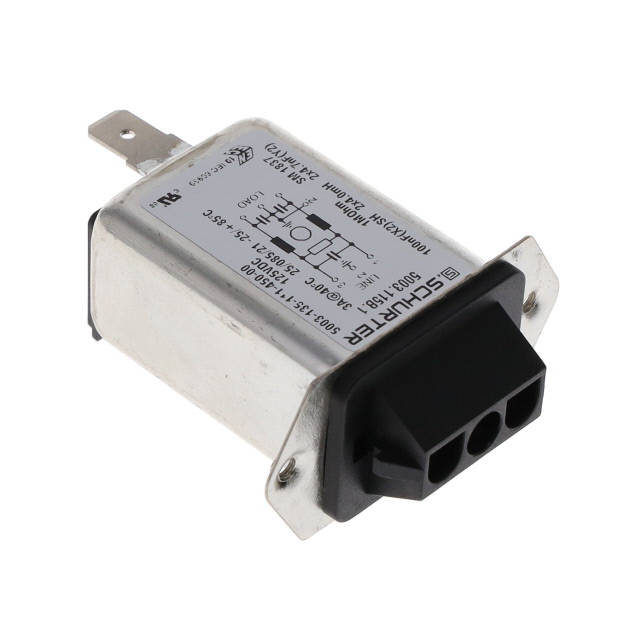

The Schurter 5003.115B.1 is a single-stage AC power entry module featuring an integrated EMI/RFI filter. It supports a rated current of 3A and operates at voltage ratings of 125VAC and 250VAC. The unit utilizes a solder termination style for PCB mounting and employs a chassis mount installation method. Designed for 50Hz and 60Hz frequencies, it incorporates a DC connector interface alongside the AC receptacle.

Feature Summary

• Integrated EMI/RFI filtering for noise suppression
• Combined AC receptacle and DC connector interface
• Solder termination for secure PCB integration

Applications

• Electronic equipment requiring EMI suppression
• Chassis-mounted power supply units
• Embedded systems with mixed AC/DC input requirements

Procurement Notes

Verify the specific datasheet revision to confirm pinout compatibility and thermal characteristics before integration. Ensure the selected variant matches the required voltage rating (125VAC or 250VAC) and current capacity (3A). Cross-reference the DC connector specifications with the mating cable assembly to guarantee mechanical and electrical fit within the target enclosure design.

Selection Notes

Select this component when space-constrained designs require both power inlet and signal filtering in a single chassis-mount package. The solder termination style is suitable for automated PCB assembly processes. Evaluate the leakage current and insertion loss parameters against regulatory compliance standards relevant to the final product's market destination.

Part Context

This part belongs to Schurter's power entry module lineup, which focuses on safety-certified components for global markets. The series typically includes variants with different filter stages and connector configurations. These modules are engineered to meet stringent international safety standards, providing reliable protection for sensitive electronic circuits against electromagnetic interference.

Replacement Considerations

Consult official Schurter documentation for direct cross-references. Verify that any substitute maintains identical terminal spacing, voltage ratings, and filter performance characteristics to ensure circuit integrity.
