5003.1211.1

Overview

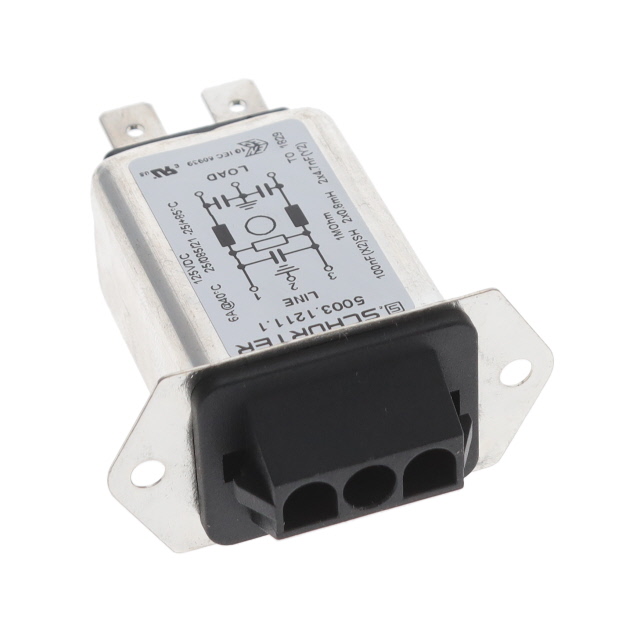

The Schurter 5003.1211.1 is a DC filter power entry connector designed for appliance applications with ECO Design compliance. It features a receptacle configuration with male pins, compatible with AMP Universal MATE-N-LOK or Molex MLX mating connectors. The unit supports front or rear side mounting using screws with nuts or blind rivets. This component integrates filtering capabilities directly into the power inlet assembly to manage electromagnetic interference in connected systems.

Feature Summary

• Integrates DC filtering functionality within the power entry module architecture
• Supports flexible installation via front or rear side mounting options
• Compatible with standard AMP Universal MATE-N-LOK and Molex MLX connector interfaces

Applications

• Appliance power entry systems requiring integrated filtering
• ECO Design compliant electronic equipment power interfaces
• Industrial control units utilizing standardized rectangular connector systems

Procurement Notes

Verify compatibility with specific AMP MATE-N-LOK or Molex MLX housing variants before integration. Confirm mechanical mounting requirements align with chassis design constraints for front or rear side installation. Ensure electrical specifications meet system voltage and current demands. Check product status as some listings indicate obsolete status; source only from authorized distributors with valid stock verification.

Selection Notes

Select this component when a combined power inlet and EMI filter solution is required for space-constrained designs. Evaluate mechanical fit against available panel thicknesses for screw or blind rivet mounting. Compare interface compatibility with existing cable assemblies using AMP or Molex connectors. Consider thermal management needs relative to the integrated filter's power dissipation characteristics.

Part Context

This part belongs to Schurter's power entry connector portfolio, specifically targeting appliances and industrial equipment. It represents a specialized variant integrating filtering functions rather than serving as a standalone fuse or switch. The component bridges power distribution and signal integrity requirements in modern electronic enclosures.

Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement. Verify functional equivalence carefully if considering alternative manufacturers' filtered power inlets.
