5003.1231.1

Overview

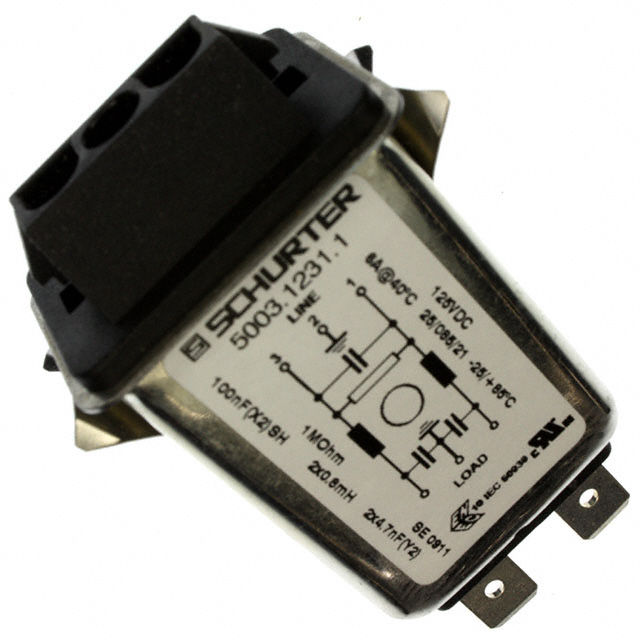

The SCHURTER 5003.1231.1 is a single-phase AC power entry module designed for panel mounting applications. It features an integrated EMC/EMI line filter and utilizes quick connect terminals with a 0.250-inch pitch for circuit attachment. The unit is rated for a maximum voltage of 125 VAC and supports a continuous current of 10 A. Constructed from thermoplastic material, it meets UL 94 V-0 flammability standards and operates within a temperature range of -25°C to +85°C.

Feature Summary

• Integrated single-stage EMC/EMI filtering for noise suppression
• Panel mount design with quick connect termination
• Thermoplastic housing with UL 94 V-0 rating

Applications

• Single-phase AC power input stages
• Equipment requiring EMI/EMC compliance
• Panel-mounted electronic enclosures

Procurement Notes

Verify the specific voltage rating against application requirements, as datasheets may list 125V or 250V variants within the same series. Confirm terminal type compatibility with mating connectors. Check for RoHS compliance status if required by project specifications. Ensure the operating temperature range aligns with the intended environment.

Selection Notes

Select this component when a compact, filtered power inlet is needed for low-voltage AC applications. The 10A rating suits moderate power loads. Verify that the quick connect interface matches existing wiring harnesses. Consider thermal management if ambient temperatures approach the upper limit of 85°C.

Part Context

This part belongs to the Schurter 5003 series of AC power entry modules. The series offers various configurations including switched and unswitched options with different current ratings and filter types. The 5003.1231.1 specifically addresses needs for filtered, non-switched power connections in space-constrained designs.

Replacement Considerations

Consult official Schurter documentation for direct cross-references. Verify pinout and electrical ratings before substituting with generic equivalents.
