5003.125B.1

Overview

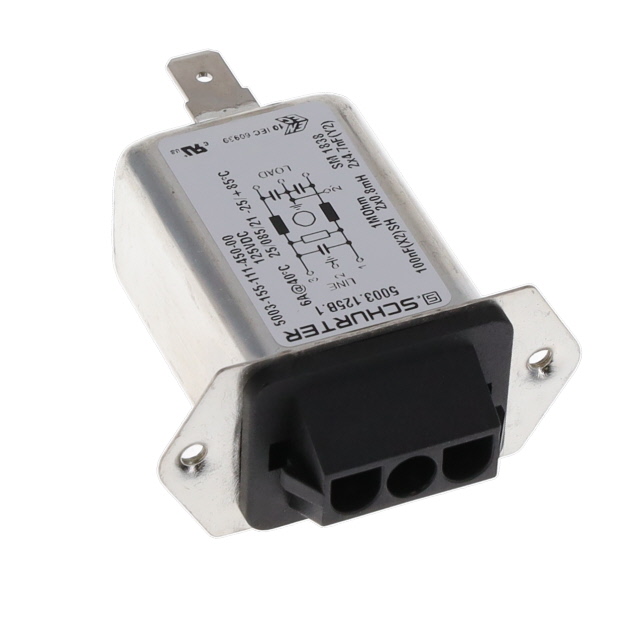

The SCHURTER Inc. 5003.125B.1 is a single-phase EMI/RFI power line filter designed for signal suppression applications. It features a rated current of 6 A and operates at a rated voltage of 125 VAC. The component utilizes a quick connect termination style and supports chassis mounting configurations. This filter is part of the ECO Design series, intended for efficient electromagnetic compatibility in electronic systems.

Feature Summary

• Provides single-stage EMI/RFI suppression for single-phase circuits
• Supports front or rear side mounting flexibility
• Utilizes quick connect terminals for simplified integration

Applications

• Signal processing equipment requiring noise reduction
• Electronic devices needing EMC compliance
• Power entry modules for sensitive instrumentation

Procurement Notes

Verify component authenticity through authorized Schurter distributors. Confirm RoHS compliance status and specific datasheet revisions prior to procurement. Ensure mounting hardware compatibility with chassis specifications. Validate terminal connection requirements against design schematics. Check for obsolete status indicators as availability may be limited.

Selection Notes

Select this model for applications requiring 6 A capacity at 125 VAC. Ensure the quick connect interface matches existing PCB or wiring harness designs. Consider chassis mounting constraints when evaluating spatial requirements. Verify that single-stage filtering meets the specific EMI attenuation needs of the target system.

Part Context

This component belongs to Schurter's power line filter portfolio, specifically engineered for electromagnetic interference suppression. It serves as a critical element in maintaining signal integrity within electronic assemblies by attenuating high-frequency noise conducted along power lines.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official Schurter catalogs for equivalent single-phase filters with matching electrical ratings and form factors.
