5003.126B.1

Overview

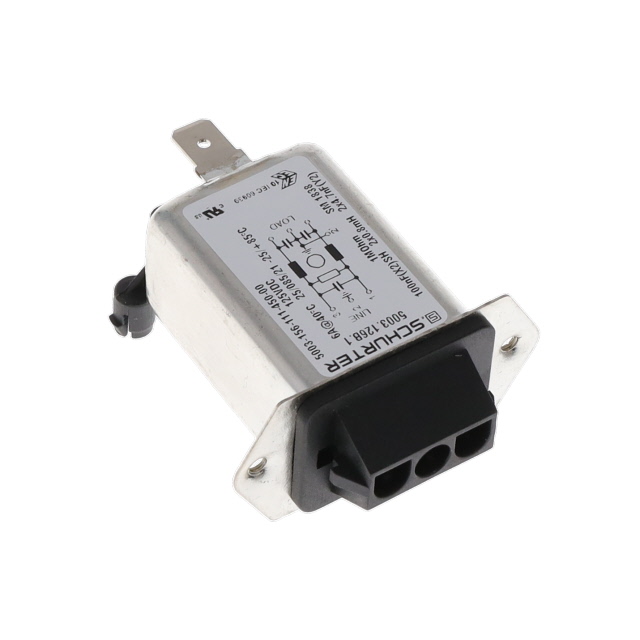

The SCHURTER Inc. 5003.126B.1 is a single-phase AC power entry module featuring integrated EMI/RFI filtering. It supports a current rating of 6A and voltage ratings of 125VAC or 250VAC. The unit utilizes quick connect terminals for circuit attachment and is designed for chassis mounting. This component provides essential noise suppression for sensitive electronic equipment connected to AC mains power.

Feature Summary

• Integrated EMI/RFI filtering for noise suppression
• Single-phase power entry design
• Quick connect terminal interface

Applications

• Industrial control systems
• Medical equipment power supplies
• Test and measurement instruments

Procurement Notes

Verify the specific datasheet version for the 5003.126B.1 model, as Schurter product lines undergo frequent revisions. Confirm that the 6A rating and quick connect termination are compatible with your system's wiring harness and thermal management requirements before finalizing procurement.

Selection Notes

Select this module when a compact solution combining power inlet and EMI filtration is required. Ensure the chassis opening dimensions accommodate the mounting style. Verify that the 6A continuous current capacity meets the peak load demands of the downstream circuitry without excessive temperature rise.

Part Context

This component belongs to the 5003 series of AC power entry modules from Schurter. These modules are engineered for reliable operation in various industrial and commercial environments. The series typically offers options for different current ratings and filter configurations to suit diverse power supply needs.

Replacement Considerations

Publicly confirmed substitute part numbers for the 5003.126B.1 were not identified in the provided documentation. Cross-referencing with other models in the 5003 series may be necessary if direct replacements are unavailable.
