5003.1311.1

Overview

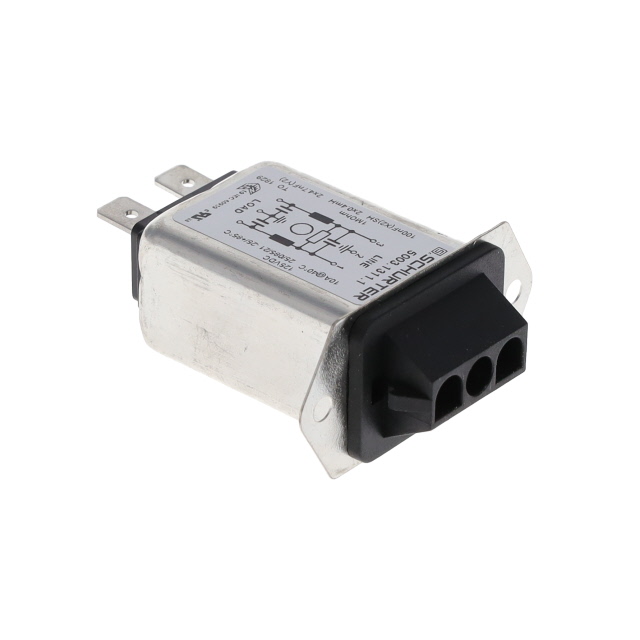

The SCHURTER 5003.1311.1 is a single-phase EMC/EMI line filter module designed for appliance inlet applications. It features a 10 A current rating and operates at 125 V AC. The unit utilizes a quick connect interface for circuit integration. Designed to meet ECO Design standards, it provides electromagnetic interference suppression in a compact form factor suitable for front or rear side mounting configurations.

Feature Summary

• Single-stage EMI/EMC filtering architecture
• ECO Design compliant construction
• Quick connect terminal interface

Applications

• Appliance inlet integration
• Electromagnetic interference suppression
• Power line filtering

Procurement Notes

Verify the specific datasheet version to confirm compliance with current regional safety regulations. Ensure the quick connect terminals match the mating connector specifications on the target PCB or harness. Confirm that the 125 V AC rating aligns with the local mains voltage requirements of the end application.

Selection Notes

Select this component when a single-stage solution is sufficient for noise attenuation requirements. The 10 A rating suits moderate power loads. Verify physical space constraints as the module supports both front and rear mounting orientations. Ensure the operating temperature range covers the environmental conditions of the installation site.

Part Context

This model belongs to Schurter's power line filter modules category. It is engineered specifically for integration into appliance inlets. The design prioritizes compact footprint and standardized connection methods to facilitate assembly in consumer electronics and home appliances requiring basic EMI protection.

Replacement Considerations

Consult official Schurter documentation for verified substitute part numbers. Do not assume cross-compatibility with other series without validating electrical parameters and mechanical dimensions against the original specification sheet.
