5003.1321.1

Overview

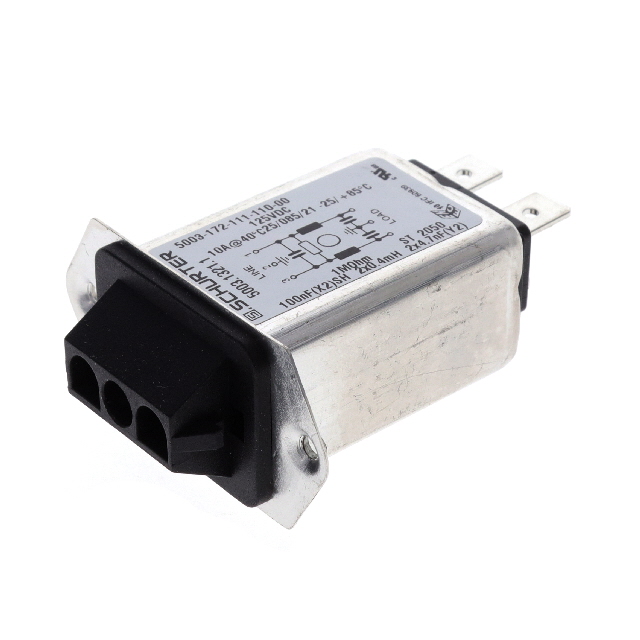

The SCHURTER 5003.1321.1 is a single-phase EMC/EMI line filter designed for DC applications, rated at 10A and 125V DC. It features an ECO Design compliant architecture with front or rear side mounting capabilities. The unit utilizes quick connect terminals for circuit integration. This component serves as an appliance inlet filter to mitigate electromagnetic interference in low-voltage DC power systems.

Feature Summary

• Single-phase EMC/EMI filtering for DC circuits
• ECO Design compliance for energy efficiency
• Flexible front or rear side panel mounting options

Applications

• Appliance inlet protection
• DC power signal conditioning
• Low voltage electronic equipment filtering

Procurement Notes

Verify the specific DC rating (125V) against system requirements, as this model differs from AC variants. Confirm terminal type compatibility during installation. Ensure the mounting orientation aligns with enclosure design constraints. Cross-reference official datasheets for precise dimensional tolerances before procurement.

Selection Notes

Select this model for single-phase DC applications requiring 10A capacity. It is suitable where ECO Design standards are mandated. Consider the quick connect interface for assembly speed. Evaluate space constraints due to front/rear mounting flexibility compared to fixed PCB mounts.

Part Context

This component belongs to Schurter's line filter portfolio, specifically targeting appliance inlets. It addresses EMI suppression needs in DC environments, distinct from their AC mains filters or high-voltage automotive fuses. The product supports modern electronic devices requiring clean power input.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
