5003.1323.1

Overview

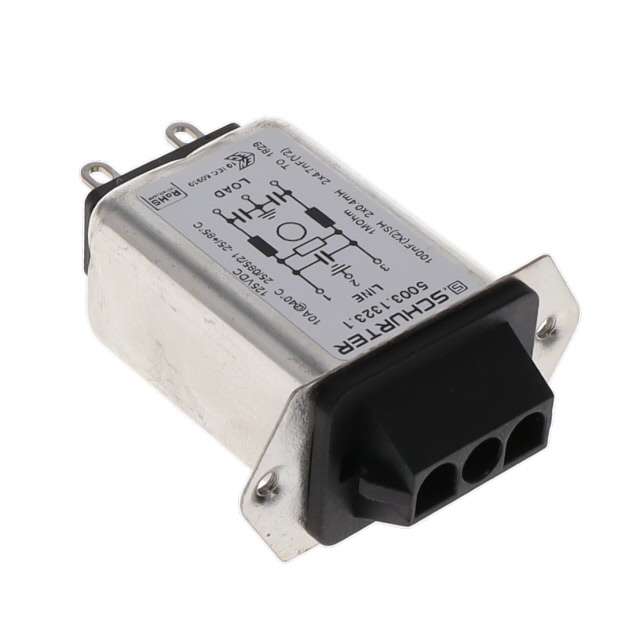

The Schurter 5003.1323.1 is a panel-mount power entry receptacle designed for solder termination. It belongs to the TENCO series and features a C14 connector type. The component supports a rated current of 10 A and a rated voltage of 250 VAC. It operates within a temperature range of -25°C to +85°C. The unit includes integrated fuse protection and does not incorporate switching functionality.

Feature Summary

• Integrated fuse protection mechanism
• Panel mount installation style
• Solder termination interface

Applications

• Medical equipment power input
• Industrial control panels
• General electronic enclosures

Procurement Notes

Verify the specific suffix against official datasheets to confirm exact termination and mounting configurations. Ensure compatibility with local safety regulations and certification requirements before integration. Confirm that the soldering process parameters align with the manufacturer's thermal specifications to prevent damage during assembly.

Selection Notes

Select this component when a fused, non-switched C14 inlet with solder terminals is required. Verify that the 10 A current rating and 250 VAC voltage rating meet the system design requirements. Consider the panel thickness and hole dimensions to ensure proper mechanical fit and IP rating maintenance.

Part Context

This part is part of Schurter's TENCO series of power entry modules. The series offers various configurations including switched and filtered options. The 5003.1323.1 specifically provides a basic fused inlet solution without additional filtering or switching capabilities, focusing on essential circuit protection and connection.

FAQ

Does the 5003.1323.1 include EMI filtering?

No, this specific model is a standard fused inlet without integrated EMI filtering components.

What is the connector type for this receptacle?

The receptacle uses a C14 connector type to mate with standard C13 power cords.
