5003.1336.1

Overview

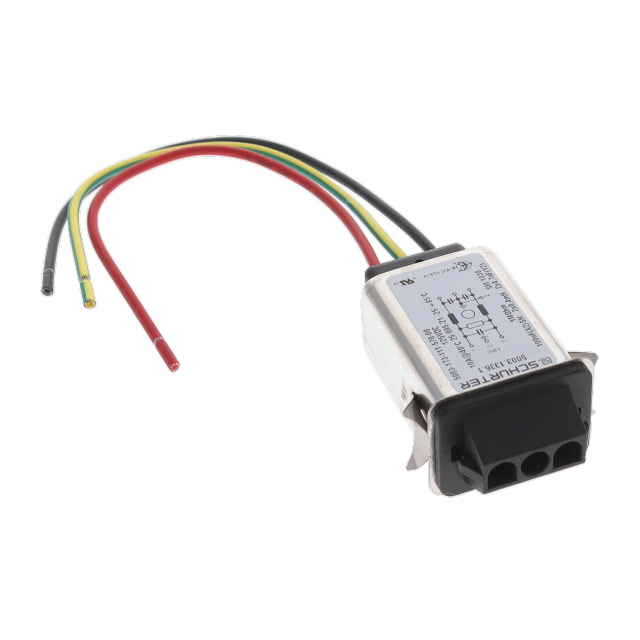

The SCHURTER Inc. model 5003.1336.1 is a single-phase AC power entry module designed for panel mounting applications. This component integrates an EMC/EMI line filter to suppress electromagnetic interference within electrical circuits. It features a rated current capacity of 10 A and supports operation at voltages up to 125 V DC. The unit utilizes wire leads for connection and does not include an integrated switch or fuse holder. Designed for robust performance, it serves as a filtered power inlet solution for electronic equipment requiring noise reduction.

Feature Summary

• Integrates single-stage EMC/EMI filtering to reduce conducted noise
• Provides direct wire lead connections for circuit integration
• Designed for secure panel mounting installation

Applications

• Electronic equipment requiring EMI suppression
• Power input stages for filtered signal integrity
• Industrial control panels with noise sensitivity

Procurement Notes

Verify the specific voltage rating compatibility with your system design, as datasheets may list varying DC limits. Confirm that the wire lead termination method matches your assembly requirements. Ensure the panel cutout dimensions align with the physical specifications of this Schurter series module before procurement.

Selection Notes

Select this module when integrated filtering is required without the complexity of separate components. It is suitable for designs needing a compact, pre-filtered power inlet. Consider the wire lead configuration for ease of assembly compared to solder cup alternatives. Verify that the 10 A current rating meets the peak load demands of the downstream circuitry.

Part Context

This component belongs to the Schurter 5003 series of AC power entry modules. The series is characterized by integrated filtering capabilities and standardized panel mounting footprints. It represents a specialized variant optimized for lower voltage DC applications while maintaining standard AC inlet form factors for interchangeability in compatible chassis designs.

Replacement Considerations

Cross-reference with other Schurter 5003 series variants for mechanical fit. Verify if alternative models offer higher voltage ratings or different lead configurations. Ensure any substitute maintains the same filtering attenuation characteristics and current handling capabilities.
