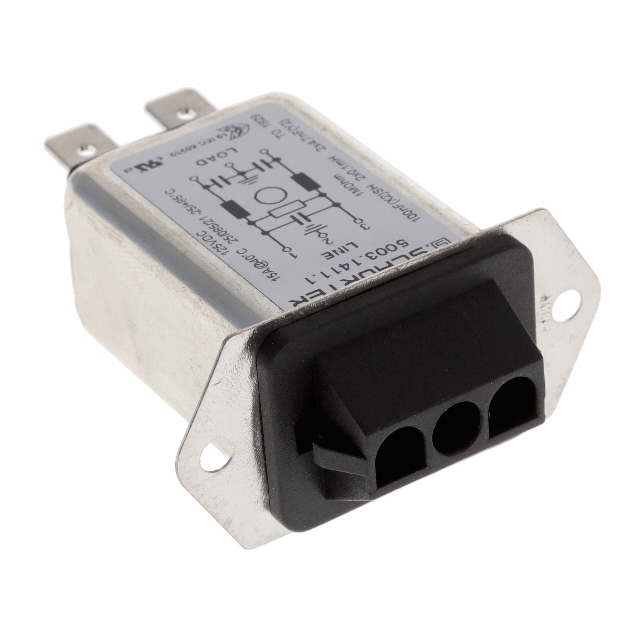

5003.1411.1

Description：LINE FILTER 125VDC 15A PANEL MNT
Series：5003
Mfr：SCHURTER Inc.
Package：Bulk

SKU:8e0157c8e957 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 125VDC 15A PANEL MNT
Series：5003
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：125V
Voltage - Rated AC：-
Current：15 A
Frequency - Operating：-
Applications：Signal
Approval Agency：cURus, ENEC, UL, VDE
Operating Temperature：-25°C ~ 85°C
Mounting Type：Panel Mount
Termination Style：Quick Connect
Inductance：100µH
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

5003.1411.1

Overview

The Schurter 5003.1411.1 is a single-phase EMC/EMI line filter module designed for panel mounting. It features a current rating of 15 A and operates at voltages up to 125 V AC or DC. The unit utilizes a quick connect terminal interface for circuit integration. This component provides electromagnetic interference suppression within a compact form factor suitable for power line applications.

Feature Summary

Single-stage electromagnetic interference filtering
Quick connect terminal interface
Panel mount construction

Applications

Power line EMI suppression
Electromagnetic compatibility modules

Procurement Notes

Verify the specific voltage and current ratings against the application requirements before procurement. Confirm that the quick connect terminal type matches the existing wiring harness. Ensure the panel mounting dimensions are compatible with the enclosure design. Check for any specific environmental certifications required for the deployment location.

Selection Notes

Select this model when a single-stage solution is sufficient for the noise reduction needs. Consider the 15 A current capacity and 125 V operating limit during system design. Evaluate the physical space constraints for the panel mount configuration. Compare performance characteristics against multi-stage alternatives if higher attenuation is necessary.

Part Context

This component belongs to the Schurter power line filter module series. It is engineered for general electromagnetic interference mitigation in low-voltage power circuits. The product line focuses on providing reliable noise suppression through standardized panel-mount designs.
