5003.1431.1

Overview

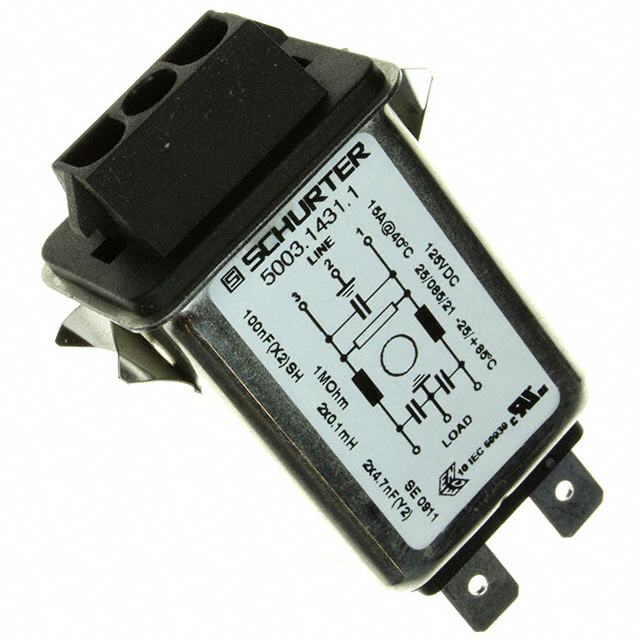

The Schurter 5003.1431.1 is a single-phase DC power entry module designed for appliance integration. It features an integrated EMC/EMI line filter and supports a maximum current of 15 A at 125 V DC. The unit utilizes quick-connect terminals for circuit attachment and allows for front or rear side mounting configurations. This component complies with ECO Design standards, ensuring efficient energy usage in compatible electronic systems.

Feature Summary

• Integrated single-stage EMC/EMI filtering for noise suppression
• Quick-connect terminal interface for simplified assembly
• Flexible mounting options supporting front or rear panel installation

Applications

• DC-powered consumer appliances
• Medical equipment power supplies
• Industrial control units requiring filtered DC input

Procurement Notes

Verify the specific voltage rating and current capacity against the target circuit requirements before procurement. Confirm that the quick-connect terminal type matches the wiring harness specifications. Ensure the mounting style aligns with the enclosure design constraints to guarantee proper fit and electrical safety during installation.

Selection Notes

Select this module when a combined power inlet and EMI filter solution is required for DC applications. Consider the physical dimensions and mounting orientation relative to the available space in the device chassis. Evaluate the thermal performance characteristics to ensure adequate heat dissipation under continuous load conditions within the operating environment.

Part Context

This component belongs to the Schurter 5003 series of power entry modules. The series focuses on providing compact solutions for integrating power connection and electromagnetic interference suppression into end-use devices. These modules are engineered to meet stringent regulatory standards for emissions and safety in global markets.
