5003.145B.1

Overview

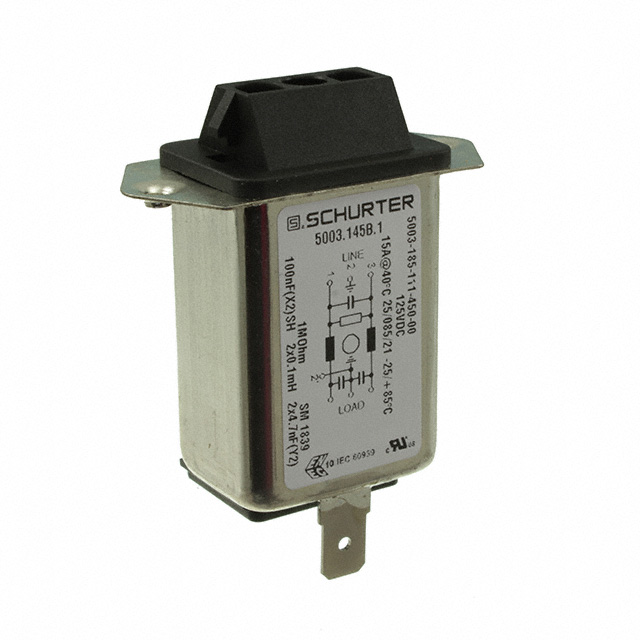

The SCHURTER Inc. 5003.145B.1 is a single-phase, single-stage EMC/EMI power line filter designed for chassis or panel mounting. It features a rated current of 15 A and operates at voltage ratings of 125 VAC and 250 VAC. The component utilizes PC pin termination for circuit board integration. It is certified by UL standards and complies with RoHS directives. The unit weighs approximately 212 grams and functions within standard industrial frequencies of 50 Hz and 60 Hz.

Feature Summary

• Single-stage electromagnetic interference suppression
• Panel mount configuration with solder termination
• UL listed compliance for safety standards

Applications

• Industrial equipment power input stages
• Medical device power supply filtering
• Consumer electronics EMI reduction

Procurement Notes

Verify the specific datasheet version to confirm exact leakage current values and insertion loss characteristics required for your design. Ensure that the PC pin spacing matches your PCB layout constraints. Confirm RoHS status details if restricted substances are a critical project requirement. Cross-reference the UL file number for final acceptance in regulated markets.

Selection Notes

Select this component when a compact, single-phase filter is needed for 15 A applications. The solder terminal style requires compatible PCB footprints. Verify that the 125 VAC/250 VAC ratings align with the local mains supply. Consider the physical dimensions and weight for enclosure space planning.

Part Context

This part belongs to Schurter's general power line filter portfolio. It serves as an EMI suppression solution for AC power inputs. The FMLB series designation indicates its structural classification within the manufacturer's catalog. It addresses conducted noise on single-phase lines.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
