5003.146B.1

Overview

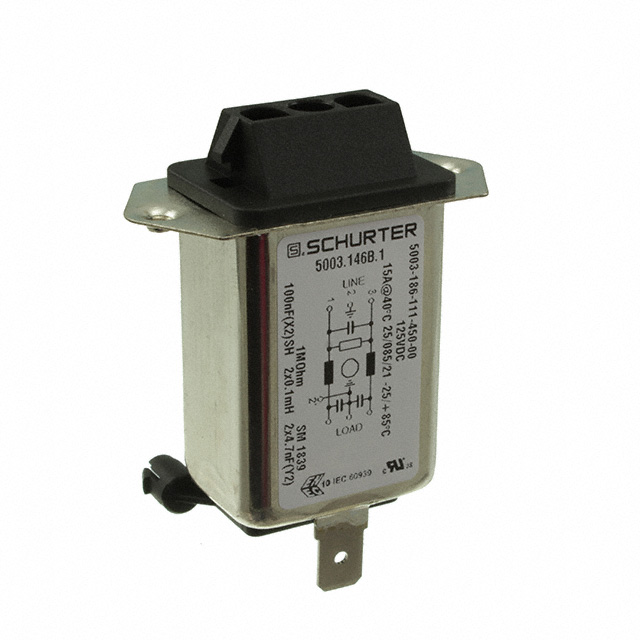

The SCHURTER 5003.146B.1 is a single-phase EMC/EMI line filter module designed for panel mounting via solder terminals. It operates at a rated voltage of 125V AC with a continuous current rating of 15A. The unit utilizes a single-stage filtering architecture to suppress electromagnetic interference in power supply lines.

Feature Summary

• Single-stage EMI suppression architecture
• Panel-mount construction with solder termination
• Designed for AC power line applications

Applications

• AC power input filtering
• Electromagnetic interference suppression
• Power entry modules

Procurement Notes

Verify the specific datasheet version and terminal configuration before integration. Confirm that the 125V AC rating aligns with the target circuit requirements. Ensure soldering parameters comply with thermal limits specified in the manufacturer's documentation to maintain component integrity.

Selection Notes

Select this component when a compact, single-stage solution is required for 125V AC systems. The 15A current capacity suits moderate power loads. Verify that the solder pin pitch and panel cutout dimensions match the mechanical design constraints of the enclosure.

Part Context

This part belongs to the SCHURTER power entry and filtering portfolio. It serves as an integrated solution for noise reduction at the power inlet stage. The design prioritizes space efficiency through its single-stage topology while maintaining necessary attenuation levels for compliance.

Replacement Considerations

Consult official substitution lists for equivalent ratings. Verify that any alternative maintains the same 15A current rating, 125V AC voltage rating, and compatible physical footprint for direct replacement.
