5003.2111.1

Overview

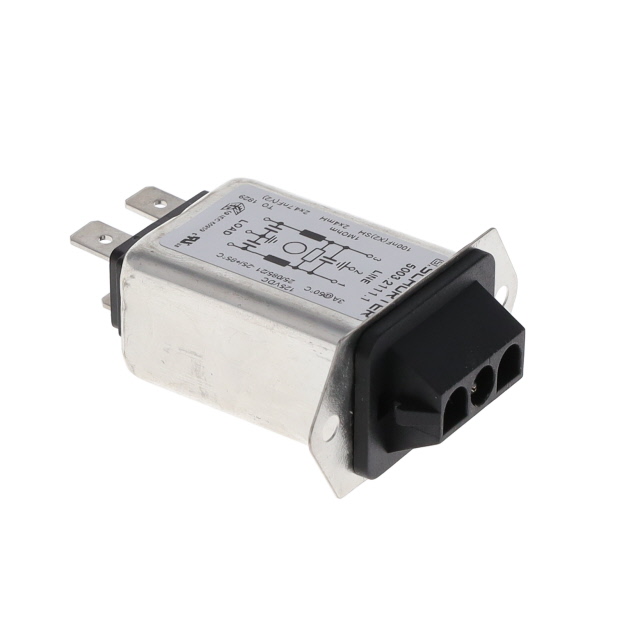

The SCHURTER 5003.2111.1 is a single-phase AC power entry module designed for panel mounting. It features an integrated EMC/EMI line filter and operates at a rated voltage of 125VAC with a current rating of 10A. The unit utilizes quick connect terminals for electrical interfacing and includes a standard filter configuration. Constructed from thermoplastic material, it meets UL 94 V-0 flammability standards. The component supports a wide operating temperature range from -25°C to +85°C and complies with RoHS directives.

Feature Summary

• Integrated single-stage EMC/EMI filtering for noise suppression
• Panel mount construction with thermoplastic housing
• Quick connect terminal interface for simplified wiring
• Compliant with UL 94 V-0 flammability ratings

Applications

• Industrial control panels requiring EMI suppression
• Medical equipment power input stages
• Consumer electronics AC power entry points
• Automotive diagnostic tool power interfaces

Procurement Notes

Verify the specific voltage rating against application requirements, as datasheets may list 125VAC or 250VAC variants within the same series. Confirm terminal type compatibility with mating connectors prior to integration. Ensure thermal management aligns with the specified operating temperature range during system design.

Selection Notes

Select this model when compact single-phase filtering is required for low-voltage AC applications. Consider the quick connect termination style for assembly speed. Evaluate space constraints against the physical dimensions provided in official documentation. Verify that the 10A current rating suffices for the load profile without derating.

Part Context

This component belongs to the SCHURTER 5003 series of AC power entry modules. The series offers various configurations including switched, fused, and filtered options. The 5003.2111.1 specifically addresses noise reduction needs in compact form factors, serving as a critical interface between the AC mains and sensitive electronic loads.

Replacement Considerations

Cross-reference part numbers within the 5003 series for alternative configurations. Check manufacturer updates for revised datasheets specifying exact voltage ratings. Validate mechanical footprint compatibility if substituting with similar filtered inlet modules from other vendors.
