50311-0054N-001

Headers, Male Pins Overview

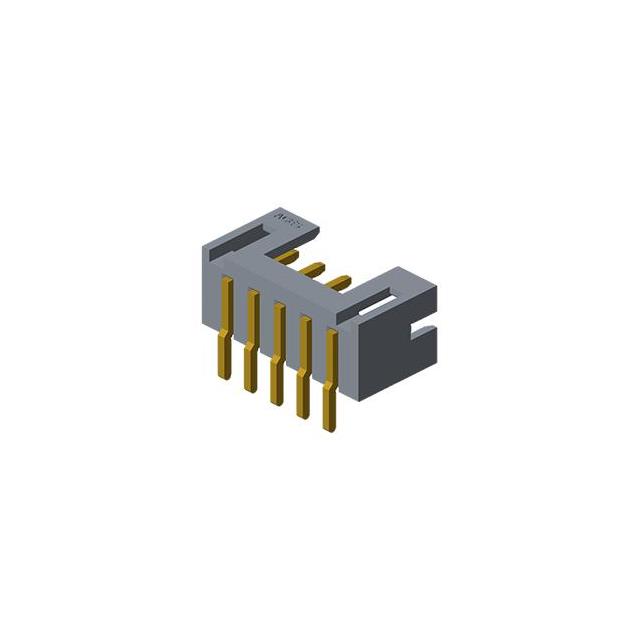

The Aces Connectors 50311-0054N-001 is a 4-position board-to-wire/header connector with a 2.0mm pitch. It features right-angle through-hole mounting and solder termination. The housing is black, halogen-free plastic rated UL94 V-0. Contacts are copper alloy with tin-lead plating (80µin thickness). Rated for 3A at 200VAC, it operates between -40°C and 85°C. The connector includes a four-wall shielded shroud and pin-locking retention.

Headers, Male Pins Feature Summary

• Right-angle through-hole design for PCB integration
• Four-wall shielded shroud for contact protection
• Pin-locking retention mechanism for secure mating

Headers, Male Pins Applications

• Board-to-wire interconnections in consumer electronics
• Internal wiring harnesses for industrial control modules
• Signal transmission in automotive electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm pin count, pitch, and termination style. Ensure compatibility with mating wire gauges and PCB hole dimensions. Check RoHS compliance status and material safety data sheets for regulatory adherence before procurement.

Headers, Male Pins Selection Notes

Select this component when a 2.0mm pitch header with right-angle orientation is required. Confirm that the 3A current rating and 200VAC voltage limit meet circuit requirements. Verify that the through-hole mounting method aligns with the PCB assembly process and that the shroud height fits within the enclosure constraints.

Headers, Male Pins Part Context

This part belongs to the 50311 series of wire-to-board connectors from Aces Connectors. The series offers various positions and mounting styles, maintaining consistent 2.0mm pitch characteristics. It is designed for reliable signal and power distribution in compact electronic devices requiring robust mechanical retention.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.0mm pitch, 4-position count, right-angle through-hole mounting, and shrouded design. Verify identical electrical ratings (3A, 200VAC) and contact plating specifications. Cross-reference mechanical dimensions to ensure PCB footprint compatibility.
