5031590304

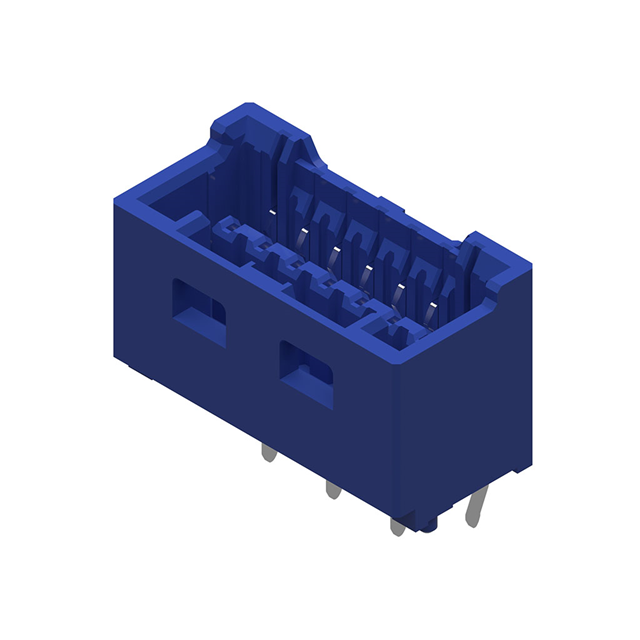

5031590304 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Molex. Its product description is 1.5W/BSGLDIPSTRECASSY3CKT. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for 5031590304

• Description：1.5W/BSGLDIPSTRECASSY3CKT
• Series：CLIK-Mate 503159
• Mfr：Molex
• Package：Tray
• Connector Type：Receptacle
• Contact Type：Forked
• Style：Board to Cable/Wire
• Number of Positions：3
• Number of Positions Loaded：All
• Pitch - Mating：0.059" (1.50mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Through Hole
• Termination：Kinked Pin, Solder
• Fastening Type：Latch Holder
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：39.4µin (1.00µm)
• Insulation Color：Blue
• Insulation Height：0.313" (7.95mm)
• Contact Length - Post：0.134" (3.40mm)
• Operating Temperature：-40°C ~ 105°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：Board Guide
• Current Rating (Amps)：Varies by Wire Gauge
• Voltage Rating：100VAC/DC

Headers, Receptacles, Female Sockets datasheet and documents for 5031590304
