5032S42194BMDAFDGFF-CT

Crystals Overview

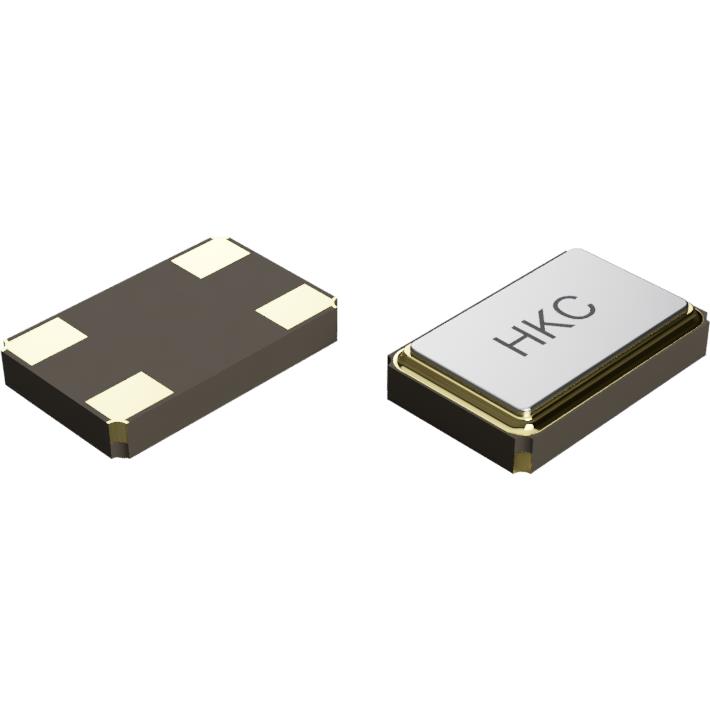

The HKC 5032S42194BMDAFDGFF-CT is a fundamental mode crystal oscillator operating at 21.948717 MHz. It features a frequency tolerance of ±20ppm and an equivalent series resistance (ESR) of 60 Ohms. The component utilizes a 12pF load capacitance and is housed in a 4-SMD, No Lead package. It supports an operating temperature range of -40°C to +85°C, ensuring reliable performance across various industrial and commercial environments.

Crystals Feature Summary

• Fundamental oscillation mode for stable frequency generation
• Compact 4-SMD no-lead surface mount package design
• Wide operating temperature range capability

Crystals Applications

• Precision timing circuits requiring specific frequency standards
• Industrial control systems with wide temperature requirements
• Commercial electronic devices needing stable clock signals

Crystals Procurement Notes

Verify the exact part number against official HKC documentation to ensure compatibility with your circuit design. Confirm that the 4-SMD no-lead package dimensions match your PCB footprint. Check that the 21.948717 MHz frequency and ±20ppm tolerance meet your system's timing accuracy requirements before placing orders.

Crystals Selection Notes

Select this component when a precise 21.948717 MHz reference is required with moderate stability. Consider the 60 Ohm ESR for impedance matching in your oscillator circuit. Ensure the operating temperature range covers your application's environmental conditions. Compare load capacitance requirements with your existing design specifications.

Crystals Part Context

This crystal belongs to HKC's SMD crystal oscillator lineup, designed for surface-mount applications. It provides a fixed frequency solution for timing needs. The 5032S series indicates the physical size and package type. These components are commonly used in digital electronics where space constraints and reliability are critical factors.

Crystals Replacement Considerations

Consult official HKC substitution guides for compatible alternatives. Verify that any replacement matches the 21.948717 MHz frequency, 12pF load capacitance, and 60 Ohm ESR. Ensure the substitute maintains the same 4-SMD no-lead package and temperature range specifications.
