50AYA6A

Overview

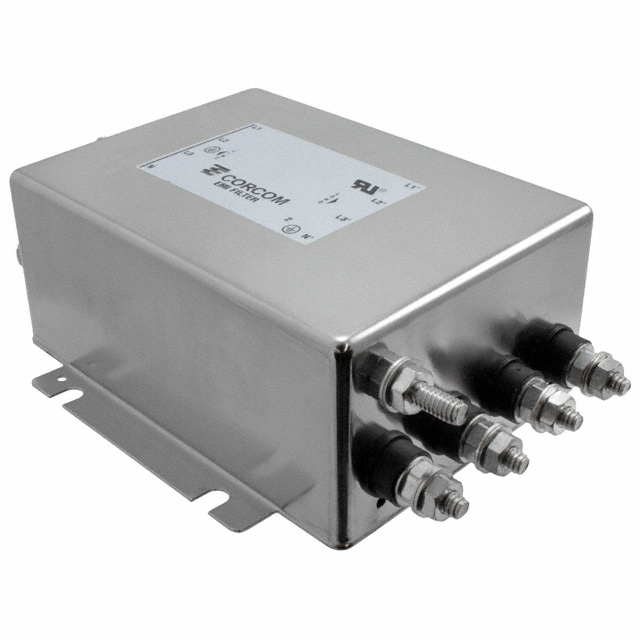

The TE Connectivity Corcom Filters 50AYA6A is a three-phase Wye configuration EMC/EMI power line filter designed for industrial applications. It supports a rated current of 50 A at frequencies of 50/60 Hz and operates with a voltage rating of 440 VAC. The unit features a single-stage filtering architecture utilizing threaded post terminals (1/4-20) for secure electrical connections. This component is engineered for chassis or flange mounting to provide robust noise suppression in high-current power distribution systems.

Feature Summary

• Provides effective electromagnetic interference and radio frequency interference suppression for three-phase power lines
• Utilizes a single-stage filtering design to maintain signal integrity in high-current environments
• Features threaded post terminal connections for reliable mechanical and electrical attachment

Applications

• Industrial machinery power supply conditioning
• Three-phase motor drive input filtering
• General purpose power line noise reduction in commercial equipment

Procurement Notes

Verify the specific mounting style and terminal orientation against the official datasheet before procurement. Confirm that the 1/4-20 threaded post specification matches the existing panel hardware. Ensure the 50 A current rating aligns with the system's maximum load requirements to prevent thermal issues during operation.

Selection Notes

Select this model when a three-phase Wye topology is required for 50 A circuits. The single-stage design offers a balance between cost and performance for general-purpose noise attenuation. Consider the flange mount option if space constraints preclude other mounting styles, ensuring the enclosure can accommodate the physical dimensions specified in the manufacturer documentation.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in EMI/RFI suppression solutions. The 50AYA6A addresses the need for reliable noise control in three-phase AC power systems, distinguishing itself through its specific 50 A capacity and threaded post interface suitable for heavy-duty industrial installations.
