50FCD10

Overview

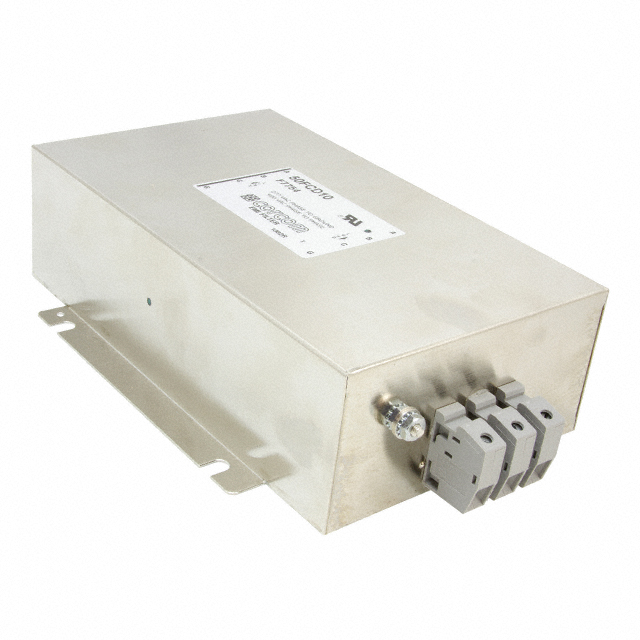

The TE Connectivity Corcom Filters 50FCD10 is a three-phase (Delta) EMC/EMI line filter designed for industrial applications. It supports a rated current of 50 A and operates at AC voltages up to 480VAC. The component functions within the 50/60Hz frequency range and utilizes a two-stage filtering configuration to suppress electromagnetic interference. Electrical connections are established via terminal block termination, ensuring secure integration into power distribution systems.

Feature Summary

• Provides two-stage EMI/RFI suppression for three-phase Delta configurations
• Engineered for high-current industrial power line environments
• Utilizes robust terminal block connections for reliable electrical interface

Applications

• Industrial power distribution systems
• Three-phase motor drive installations
• General purpose machinery requiring EMI suppression

Procurement Notes

Verify that the specific installation environment matches the 480VAC rating and 50A current capacity. Confirm that the three-phase Delta topology aligns with the system design. Ensure terminal block compatibility with existing wiring harnesses before procurement.

Selection Notes

Select this model when three-phase Delta filtering is required for high-current loads. Compare against single-phase alternatives if system topology differs. Validate thermal management requirements for continuous 50A operation in the intended enclosure.

Part Context

This component belongs to the Corcom FCD series of power line filters. It is part of TE Connectivity's portfolio of electromagnetic interference suppression solutions designed for demanding industrial and commercial power applications.

Replacement Considerations

Public confirmed substitute part numbers were not identified in the provided documentation.
