Product Detailed Parameters
- Description：LINE FILTER 440VAC 50A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：50 A
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M6)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

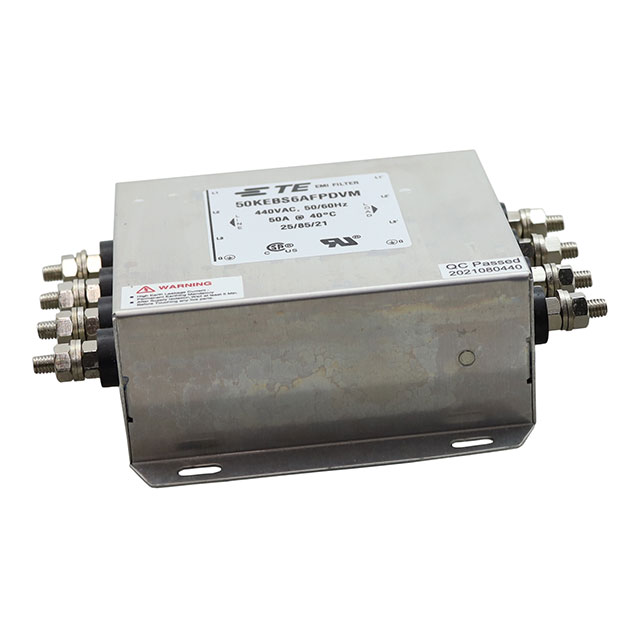

The 50KEBS6AFPDVM is a three-phase EMI/EMC power line filter manufactured by TE Connectivity / Corcom. It features a chassis mount design with terminal block termination. The unit is rated for 440 VAC and supports a current rating of 50 A at operating frequencies of 50 Hz and 60 Hz. Key electrical specifications include a leakage current of 18 mA. The component holds UL and CSA compliance certifications.
Feature Summary
- Provides three-phase EMI/EMC filtering for power lines
- Utilizes terminal block connections for secure wiring
- Designed for direct chassis mounting applications
Applications
- Industrial machinery power conditioning
- Three-phase motor drive systems
- General purpose power line filtering
Procurement Notes
Verify the exact datasheet specifications directly from the manufacturer before integration, as product details may vary. Confirm that the terminal block interface matches your system requirements. Ensure the chassis mounting dimensions accommodate your enclosure layout. Check for any specific environmental ratings required for your operational temperature range.
Selection Notes
Select this model when a 50 A capacity is required for three-phase AC circuits. The terminal block termination suits applications where screw-down connections are preferred over faston tabs. Verify that the 440 VAC rating aligns with your supply voltage. Consider the physical size constraints for chassis installation in your equipment design.
Part Context
This component belongs to the Corcom KEB series of power line filters. These filters are engineered for industrial environments requiring robust noise suppression. The series offers various current ratings and termination styles to suit different power distribution needs within electrical control panels and machinery.
Replacement Considerations
The part number 6-1609965-1 is an alias for this component. When sourcing replacements, ensure the substitute matches the 50 A current rating, 440 VAC voltage, and terminal block termination style to maintain compatibility.
