Product Detailed Parameters
- Description：LINE FILTER 520VAC 50A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：50 A
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M6)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

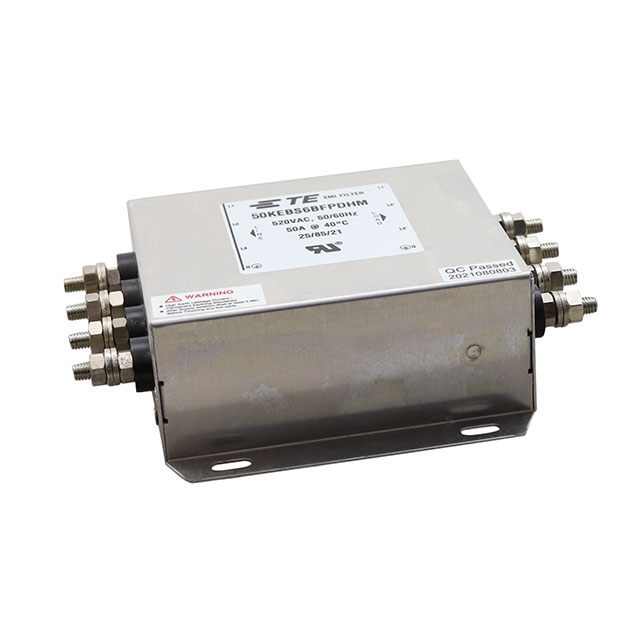

The TE Connectivity Corcom Filters model 50KEBS6BFPDHM is a three-phase EMC/EMI line filter designed for industrial applications. It features a single-stage configuration with a rated current of 50 A and operates at 520 VAC within the 50 to 60 Hz frequency range. The unit utilizes threaded M6 posts for termination and employs a nut delta mounting style. This component provides general-purpose power line filtering capabilities.
Feature Summary
- Provides three-phase EMI/RFI noise suppression
- Utilizes threaded post termination method
- Supports high-current industrial loads
Applications
- Industrial machinery power supplies
- Three-phase motor drives
- General purpose power distribution systems
Procurement Notes
Verify the specific voltage rating and phase configuration against the equipment requirements before procurement. Confirm that the M6 threaded post termination matches the available connection points on the target system. Ensure the physical dimensions of the nut delta mounting style fit within the designated enclosure space. Check for any recent product change notices regarding manufacturing updates.
Selection Notes
Select this component when a robust three-phase solution is required for moderate to high current applications up to 50 A. The single-stage design offers a balance between performance and size constraints. Consider the threaded post termination if screw-down connections are preferred over quick-connect terminals. Evaluate the operating temperature range to ensure compatibility with the installation environment.
Part Context
This part belongs to the Corcom Filters series by TE Connectivity, specializing in electromagnetic interference suppression. The KEB designation typically indicates a specific form factor or series within their broader portfolio of power line filters. These components are engineered to meet international safety and emissions standards for electronic equipment.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific model. When replacing, ensure the new component matches the 50 A current rating, 520 VAC voltage, and three-phase delta configuration. Verify that the M6 threaded post termination and mounting style are compatible with the existing assembly.
