Product Detailed Parameters
- Description：LINE FILTER 440VAC 50A CHASS MNT
- Series：KEM
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：50 A
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

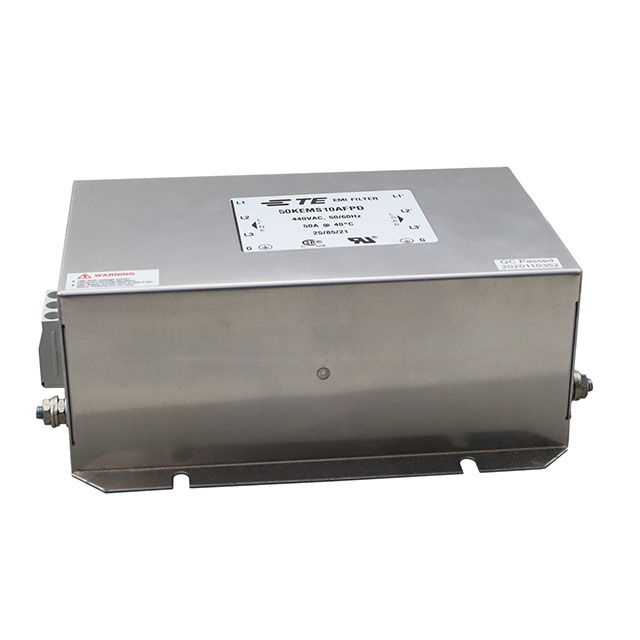

The 50KEMS10AFPD is a three-phase superior performance EMI filter manufactured by TE Connectivity / Corcom. It features a single-stage design rated for 440 VAC and 50 A current at 50 Hz or 60 Hz operating frequencies. The unit utilizes chassis mounting with terminal block connections and exhibits a leakage current of 18 mA. Physical dimensions are 202 mm in length, 120 mm in width, and 80 mm in height. It operates within a temperature range of -25°C to +85°C and holds UL and CSA compliance certifications.
Feature Summary
- Provides superior performance electromagnetic interference suppression for three-phase power lines
- Designed for high-current applications with a 50 A continuous rating
- Utilizes a robust chassis mount construction for secure installation
Applications
- Industrial power supply systems
- Battery charging infrastructure
- Energy-efficient industrial equipment
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to potential availability constraints. Confirm that the specific order matches the 50KEMS10AFPD designation, as similar models exist within the KEM series. Ensure compatibility with existing chassis mounting points and terminal block interfaces before procurement.
Selection Notes
Select this model when a three-phase delta configuration is required for 440 VAC systems. The 50 A rating suits moderate-to-high power loads. Verify that the 18 mA leakage current meets safety standards for the specific application environment. Ensure sufficient physical space for the 202 mm x 120 mm footprint.
Part Context
This component belongs to the KEM series of power line filters from TE Connectivity Corcom. The series offers various current ratings and configurations for three-phase EMI suppression. The 50KEMS10AFPD represents a mid-range capacity option within this product family, balancing performance with physical size constraints.
Replacement Considerations
Consult official TE Connectivity documentation for verified substitute part numbers. Cross-reference electrical ratings and physical dimensions carefully. Generic equivalents may not match the specified leakage current or mounting requirements.
