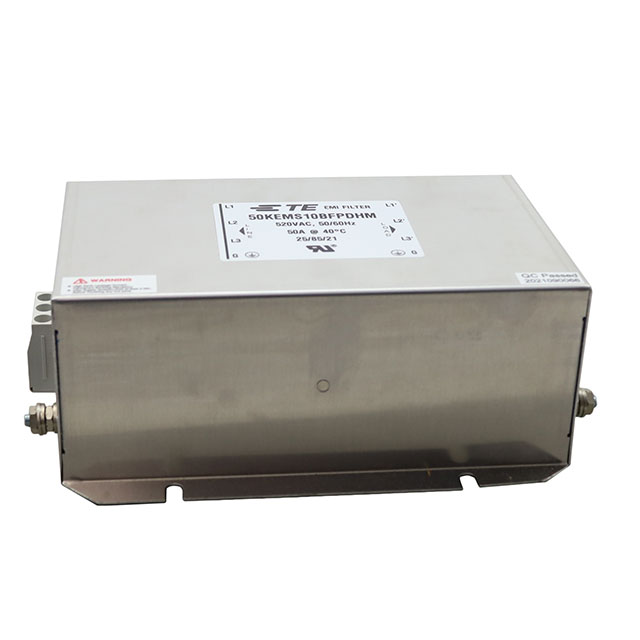

50KEMS10BFPDHM

$310.22

Description：LINE FILTER 520VAC 50A CHASS MNT
Series：KEM
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:085ca741eb94 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 520VAC 50A CHASS MNT
Series：KEM
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：520V
Current：50 A
Frequency - Operating：50 ~ 60Hz
Applications：Converter
Approval Agency：CSA, UL
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

50KEMS10BFPDHM

Overview

The 50KEMS10BFPDHM is a three-phase power line filter manufactured by TE Connectivity Corcom. It features a chassis mount design with terminal block termination for secure electrical connections. The unit is rated for 50 A current and operates at voltage ratings of 440 VAC or 520 VAC, depending on the specific configuration variant. It supports operating frequencies of 50 Hz and 60 Hz. The filter includes an integrated泄流 (leakage) current specification of 18 mA. Compliance certifications include UL and CSA standards.

Feature Summary

Provides electromagnetic interference suppression for three-phase delta configurations
Utilizes a robust chassis mount construction for industrial stability
Features terminal block termination for reliable high-current connectivity

Applications

Industrial machinery power conditioning
Three-phase motor drive systems
Commercial power distribution units

Procurement Notes

Verify the exact voltage rating required for your application, as documentation indicates both 440 VAC and 520 VAC variants exist for this part number series. Confirm that the chassis mount form factor and terminal block interface match your enclosure design. Ensure compliance with UL and CSA requirements is necessary for your target market before finalizing procurement decisions.

Selection Notes

Select this component when a three-phase EMI filter is required for high-current applications up to 50 A. The chassis mount style is suitable for panel integration where space allows for direct mounting. Verify that the terminal block connection method aligns with your wiring infrastructure. Consider the leakage current specifications if sensitive equipment is connected downstream.

Part Context

This component belongs to the KEM series of power line filters from TE Connectivity Corcom. The series is designed for general-purpose electromagnetic compatibility in industrial environments. The KEM series typically offers single-stage filtering capabilities for three-phase systems, providing noise reduction for sensitive electronic loads connected to AC power lines.
