50KEPS10AFPWHM

Overview

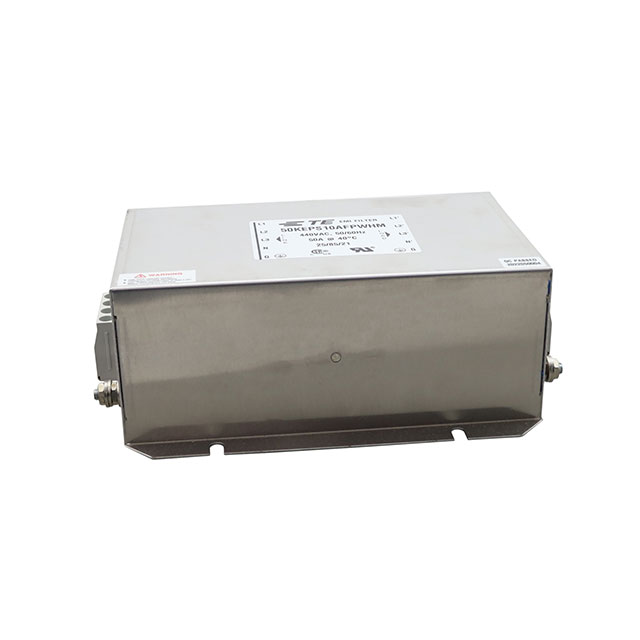

The 50KEPS10AFPWHM is a three-phase power line filter manufactured by TE Connectivity Corcom. It features a single-stage configuration designed for general-purpose electromagnetic interference mitigation. The unit supports a voltage rating of 440 VAC and handles a current capacity of 50 A. It operates within a frequency range of 50 to 60 Hz. The device utilizes terminal block connections and is engineered for chassis mounting. Physical dimensions include a length of 202 mm, width of 135 mm, and height of 80 mm. It functions reliably between -25°C and +85°C with a leakage current of 8.5 mA.

Feature Summary

• Single-stage EMI filtering architecture
• Chassis mount installation style
• Terminal block termination method

Applications

• General purpose industrial equipment
• Power conversion systems
• Electrical control panels

Procurement Notes

Verify the specific suffix 'HM' against official datasheets to confirm housing material or compliance variations. Confirm availability status as distribution channels may list this component as obsolete or limited stock. Ensure mechanical fitment matches the specified chassis mount requirements before procurement.

Selection Notes

Select this model for applications requiring 50 A continuous current handling in three-phase circuits. Verify that the 440 VAC rating aligns with the system voltage. Consider the physical footprint of 202x135x80 mm for enclosure integration. Ensure the terminal block interface matches existing wiring infrastructure.

Part Context

This component belongs to the KEPS series of power line filters from TE Connectivity Corcom. The series provides robust EMI suppression for industrial environments. The part number indicates specific electrical ratings and mounting characteristics within the broader product family.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer resources for cross-reference data.
