Product Detailed Parameters
- Description：LINE FILTER 520VAC 50A CHASS MNT
- Series：KEP
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：50 A
- Frequency - Operating：50 ~ 60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

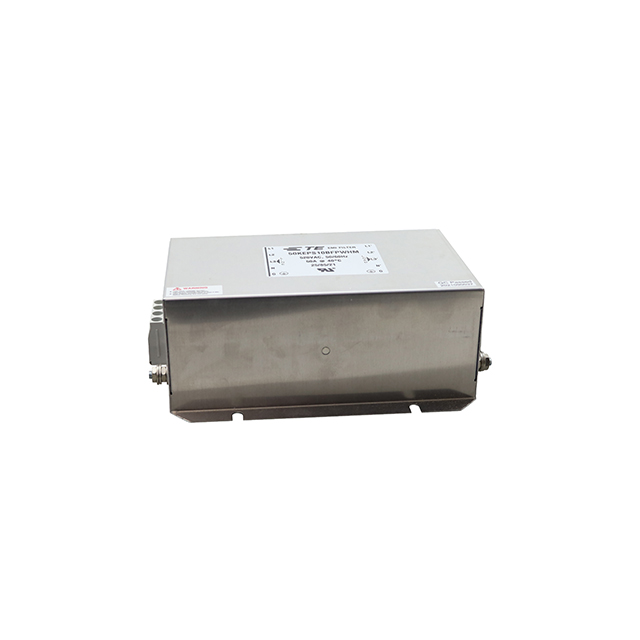

The 50KEPS10BFPWHM is a three-phase power line filter manufactured by TE Connectivity / Corcom. It features a chassis mount style with terminal block or screw connections. The unit is rated for 520 VAC and supports a current of 50 A. Operating frequencies include 50 Hz and 60 Hz. Leakage current is specified at 8.5 mA. Physical dimensions are 202 mm in length, 135 mm in width, and 80 mm in height. The device operates within a temperature range of -25°C to +85°C. Certifications include UL and CSA.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power systems
- Designed for high-performance noise reduction in industrial environments
- Constructed for durable chassis mounting applications
Applications
- Industrial machinery power conditioning
- Three-phase motor drive protection
- Commercial building electrical distribution systems
Procurement Notes
Verify the specific termination type required, as datasheets may list both terminal block and screw options for similar model variants. Confirm that the 520 VAC rating aligns with the system voltage. Check for end-of-life status or obsolescence notices from the manufacturer before finalizing procurement plans.
Selection Notes
Select this component when a three-phase filter with a 50 A continuous current rating is required. Ensure the installation space accommodates the 202 x 135 x 80 mm footprint. Verify that the operating environment stays within the -25°C to +85°C thermal limits. Confirm compatibility with existing chassis mounting hardware.
Part Context
This part belongs to the KEP series of power line filters from TE Connectivity / Corcom. The series offers various current ratings and voltage configurations for three-phase applications. The suffix indicates specific terminal and housing variations within the product family.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer's official replacement guide for equivalent specifications.
