Product Detailed Parameters
- Description：LINE FILTER 440VAC 52A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：52 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M6)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

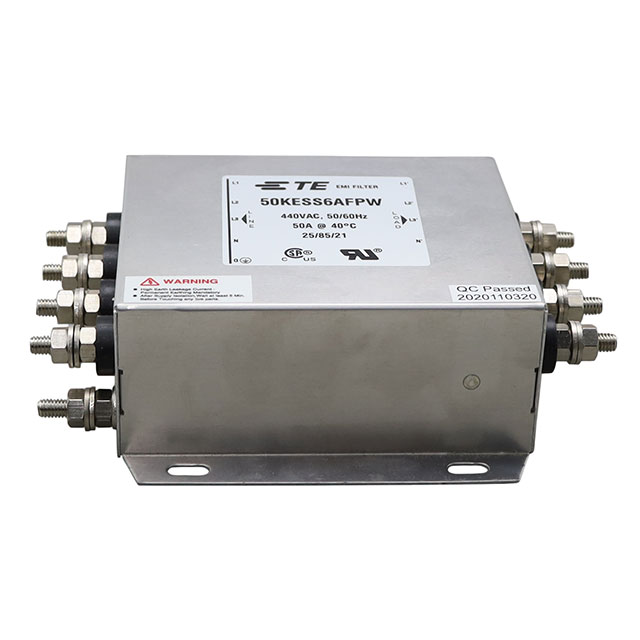

The 50KESS6AFPW is a three-phase EMI/EMC power line filter manufactured by TE Connectivity Corcom. It features a chassis mount design with screw termination and a threaded bolt flange configuration. The unit supports a current rating of 50 A at operating frequencies of 50 Hz and 60 Hz. Voltage ratings are specified as 440 VAC and 520 VAC. Physical dimensions include a width of 115 mm, height of 50 mm, and length of 128 mm. The component operates within a temperature range of -25 C to +85 C and carries UL and CSA compliance certifications.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power systems
- Utilizes a robust chassis mount structure with threaded bolt flange for secure installation
- Designed for general-purpose industrial applications requiring high current handling
Applications
- Industrial machinery power conditioning
- Three-phase motor drive protection
- Factory automation equipment filtering
Procurement Notes
Verify the specific voltage rating requirement (440 VAC or 520 VAC) against the application circuit before procurement. Confirm that the chassis mounting hole pattern matches the available panel space. Ensure the terminal type aligns with the wiring infrastructure. Check for any obstructions near the mounting area to allow proper heat dissipation within the specified operating temperature range.
Selection Notes
Select this model when a three-phase solution is required for currents up to 50 A. Compare physical dimensions against the enclosure constraints due to the specific chassis mount footprint. Evaluate the leakage current specifications if sensitive downstream equipment is present. Consider the thermal environment to ensure operation remains within the maximum working temperature limits.
Part Context
This component belongs to the KES series of power line filters from TE Connectivity Corcom. The series is engineered for industrial environments where reliable noise reduction is critical. The KES series typically offers various current ratings and mounting options to accommodate different power distribution architectures in heavy-duty electrical systems.
Replacement Considerations
Consult official TE Connectivity documentation for verified substitute part numbers. Cross-reference physical dimensions and terminal configurations to ensure mechanical compatibility. Verify that alternative components meet the same electrical ratings and certification requirements.
