Product Detailed Parameters
- Description：LINE FILTER 440VAC 50A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：50 A
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M6)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

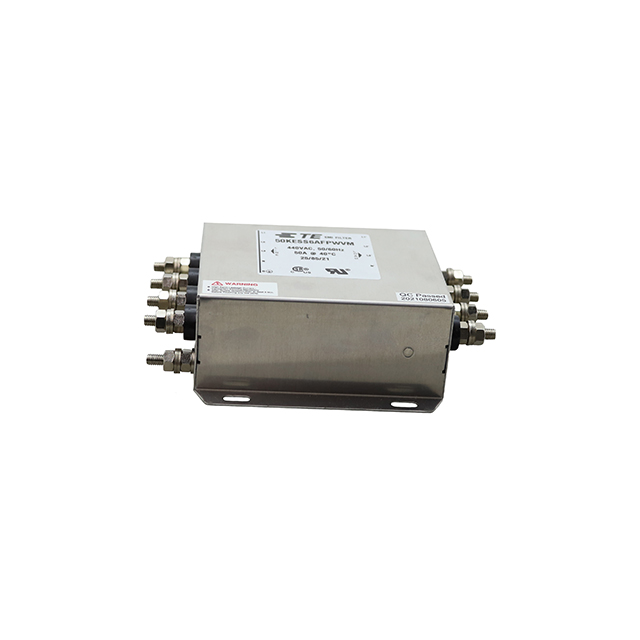

The TE Connectivity Corcom Filters 50KESS6AFPWVM is a three-phase power line filter designed for industrial applications. It features a KES series construction with a nut wye mounting style and supports a current rating of 50 A at 440 VAC. The unit operates at frequencies of 50 Hz and 60 Hz, utilizing threaded posts (M6) for secure installation. This component provides single-stage EMI/RFI filtering to ensure electromagnetic compatibility in demanding electrical environments.
Feature Summary
- Provides single-stage EMI/RFI filtering for three-phase power systems
- Features a robust chassis mount design with nut wye configuration
- Utilizes threaded M6 posts for secure mechanical attachment
Applications
- Industrial machinery power conditioning
- Three-phase motor drive protection
- Factory automation equipment EMC compliance
Procurement Notes
Verify the exact voltage rating against your system requirements, as sources indicate both 440 VAC and 520 VAC specifications for similar part numbers. Confirm the physical mounting interface matches your chassis panel thickness and hole dimensions. Ensure the M6 threaded post spacing aligns with your assembly layout before procurement.
Selection Notes
Select this model when a high-current three-phase filter is required for industrial loads. Compare the 50 A rating against your peak load demands to ensure adequate capacity. Consider the chassis mount style if panel space is limited compared to DIN rail alternatives. Verify that the single-stage filtering meets your specific emission reduction targets.
Part Context
This component belongs to the Corcom KES series, which specializes in high-current three-phase power line filters. The series is engineered for heavy-duty industrial use, offering reliable noise suppression for sensitive electronic equipment connected to three-phase power networks. It complements other Corcom solutions by providing standardized mounting interfaces.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Cross-referencing requires verifying identical electrical ratings, mounting geometry, and certification status with alternative manufacturers.
