Product Detailed Parameters
- Description：LINE FILTER 520VAC 52A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：52 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M6)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

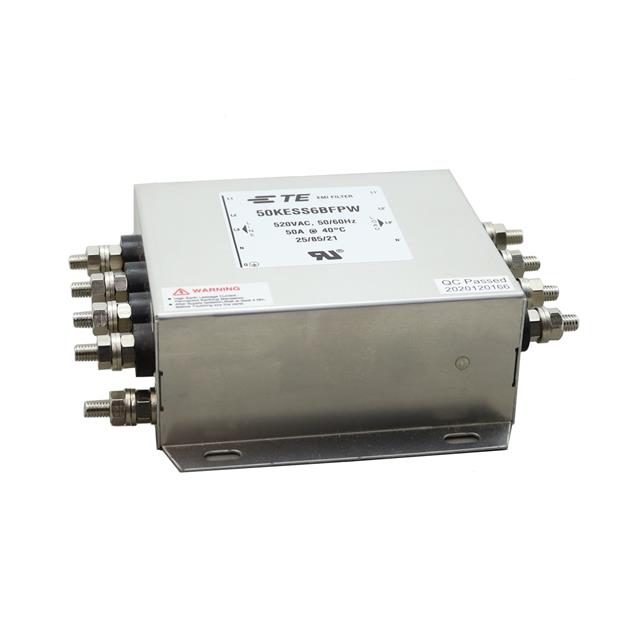

The 50KESS6BFPW is a three-phase power line filter from the KES series manufactured by TE Connectivity / Corcom. It features a chassis mount design with threaded bolt flange connections and terminal block termination. The unit is rated for 50 A current and 520 VAC voltage, operating at 50 Hz or 60 Hz frequencies. Key electrical specifications include a leakage current of 5 mA. The component holds UL and CSA compliance certifications.
Feature Summary
- Provides electromagnetic interference mitigation for three-phase power systems
- Utilizes a robust chassis mount construction with threaded bolt flange connections
- Designed for industrial environments requiring high current handling capabilities
Applications
- Industrial automation machinery
- Climate control systems
- Power distribution units
Procurement Notes
Verify the specific suffix configuration against official datasheets to ensure correct terminal and mounting compatibility. Confirm current availability status as this model may be subject to discontinuation or limited stock constraints. Cross-reference the manufacturer part number with authorized distributors to validate authenticity and technical specifications before procurement.
Selection Notes
Select this component for applications requiring a single-stage three-phase filter with a 50 A rating. Ensure the system voltage does not exceed 520 VAC. Verify that the chassis mounting style and terminal block termination align with the enclosure design. Consider the 5 mA leakage current specification for safety compliance requirements in sensitive installations.
Part Context
This component belongs to the KES series of power line filters, designed for general-purpose EMI suppression in industrial settings. It shares common design principles with other models in the series, such as the 30KESS6AFPW and 75KESS6BFPW, differing primarily in current ratings and voltage configurations. The series emphasizes durability and standardized mounting interfaces.
Replacement Considerations
Consult official TE Connectivity documentation for verified substitute part numbers. Generic equivalents may not match the specific leakage current or voltage ratings required for safe operation.
