Product Detailed Parameters
- Description：LINE FILTER 520VAC 50A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：50 A
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M6)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

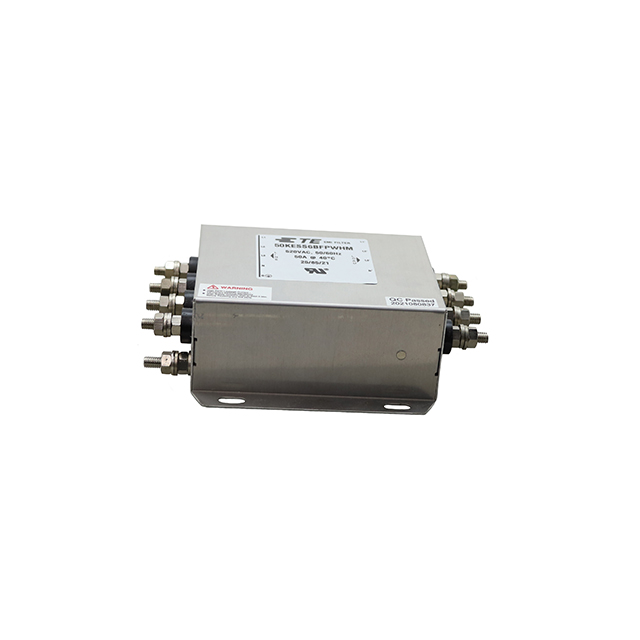

The TE Connectivity Corcom 50KESS6BFPWHM is a three-phase power line filter designed for industrial applications. It features a 50 A current rating and operates at 520 VAC. The unit utilizes a single-stage configuration with terminal block connections and chassis mounting. Certified by UL and CSA, it supports 50 Hz and 60 Hz frequencies with a leakage current of 5 mA.
Feature Summary
- Provides electromagnetic interference mitigation for three-phase power systems
- Features robust chassis mount construction for secure installation
- Includes terminal block termination for reliable electrical connectivity
Applications
- Industrial automation machinery
- Manufacturing equipment power distribution
- Commercial HVAC systems
Procurement Notes
Verify component authenticity through authorized channels due to end-of-life status. Confirm technical specifications against original datasheets before integration. Ensure compatibility with existing chassis mounting hardware and terminal block wiring requirements for the specific application environment.
Selection Notes
Select this model for high-current three-phase filtering needs requiring 50 A capacity. Consider the 520 VAC rating and single-stage design for appropriate noise suppression levels. Evaluate chassis mounting constraints and terminal block interface requirements during system design phase.
Part Context
This component belongs to the Corcom KES series of power line filters. The series offers various current ratings and voltage configurations for three-phase applications. The 50KESS6BFPWHM represents a specific variant within this lineup tailored for higher voltage operations.
Replacement Considerations
The manufacturer indicates this part is obsolete. Verify availability of equivalent models from the same product family or consult official substitution guides for compatible alternatives meeting identical electrical and mechanical specifications.
