Product Detailed Parameters
- Description：LINE FILTER 520VAC 50A CHASS MNT
- Series：KES
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：50 A
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M6)
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

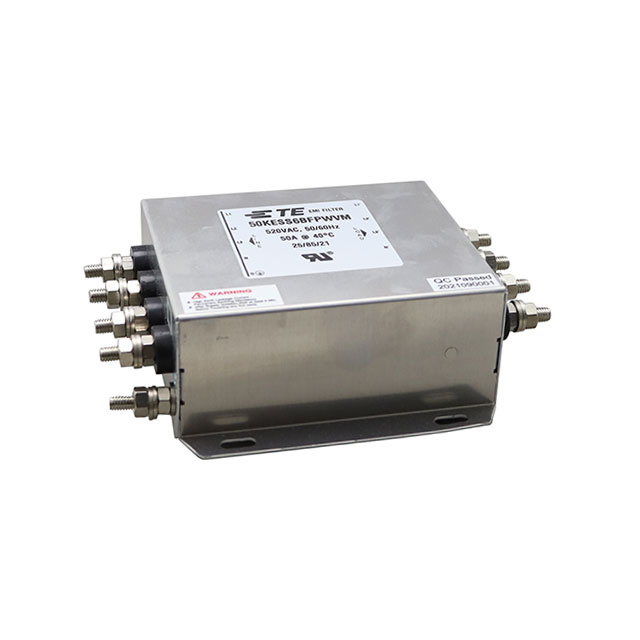

The 50KESS6BFPWVM is a three-phase power line filter manufactured by TE Connectivity / Corcom. It features a chassis mount design with threaded stud termination for secure installation. The unit is rated for a continuous current of 50 A and operates at voltages up to 520 VAC. Designed for frequencies of 50 Hz and 60 Hz, it provides electromagnetic interference mitigation in industrial environments. The filter includes a nut wye configuration and maintains a leakage current of 5 mA. Compliance certifications include UL and CSA standards.
Feature Summary
- Provides three-phase EMI/RFI filtering for power lines
- Utilizes threaded stud termination for robust chassis mounting
- Supports high voltage operation up to 520 VAC
- Certified for safety compliance under UL and CSA standards
Applications
- Industrial automation machinery
- Commercial HVAC systems
- Power distribution equipment
- Motor control centers
Procurement Notes
Verify the specific suffix against official TE Connectivity documentation to confirm terminal style and voltage ratings. Confirm availability status as product lifecycles may change. Ensure mechanical dimensions match the chassis cutout requirements before ordering. Cross-reference the manufacturer part number with authorized distributors to avoid counterfeit components.
Selection Notes
Select this model when a three-phase filter is required for circuits operating at 520 VAC with a 50 A load. The threaded stud termination is suitable for heavy-duty chassis mounting applications. Verify that the leakage current specification meets system safety limits. Ensure the operating frequency range covers both 50 Hz and 60 Hz requirements.
Part Context
This component belongs to the KES series of three-phase power line filters from TE Connectivity / Corcom. The series is designed for general-purpose EMI suppression in industrial power systems. The KES series typically offers various current ratings and termination options to accommodate different panel configurations and electrical loads.
Replacement Considerations
Consult official TE Connectivity substitution guides for verified equivalents. Generic cross-references may not match the specific voltage or current ratings. Verify mechanical compatibility and certification requirements before substituting.
