Product Detailed Parameters
- Description：LINE FILTER 480VAC CHASSIS MOUNT
- Series：TYT
- Mfr：Delta Electronics
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：480V
- Current：-
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：-
- Operating Temperature：-
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：550µH
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

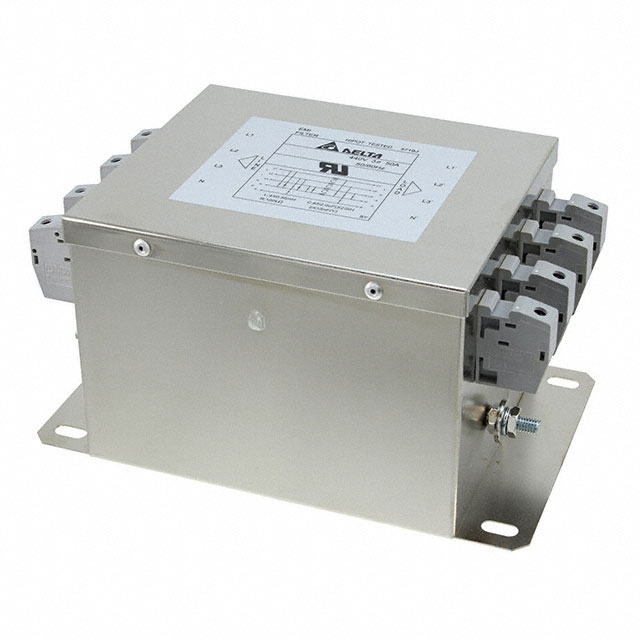

The Delta Electronics 50TYT8 is a three-phase, four-wire EMI/EMC power line filter designed for chassis mounting. It features a single-stage configuration with a rated AC voltage of 480V and operates at frequencies of 50Hz or 60Hz. The unit has a current rating of 50A and utilizes terminal block termination. Key electrical parameters include capacitance values of 2.0µF for both Cx and Cx1, Cy capacitance of 1.2nF, and inductance of 1.3mH. The component weighs 2.268 kg.
Feature Summary
- Provides electromagnetic interference suppression for three-phase power systems
- Features enclosed construction suitable for chassis installation
- Utilizes terminal block connections for secure wiring
Applications
- Industrial machinery power conditioning
- Three-phase equipment noise reduction
- Electrical panel EMC compliance
Procurement Notes
Verify the specific datasheet version to confirm compliance standards such as IEC or UL, as regulatory approvals can vary by production batch. Ensure the input voltage matches the 480VAC rating and that the load current does not exceed 50A. Confirm terminal block compatibility with existing cabling infrastructure before integration into the system design.
Selection Notes
Select this model when a single-stage solution is sufficient for moderate noise attenuation requirements in three-phase environments. Consider the physical dimensions and weight constraints for chassis mounting locations. Evaluate if the 1.3mH inductance meets the specific impedance matching needs of the connected power source and load.
Part Context
This component belongs to the TYT series of power line filters manufactured by Delta Electronics. The series offers various current ratings and capacitance configurations to suit different industrial applications. The 50TYT8 specifically addresses the needs of 50A three-phase circuits requiring standardized chassis-mountable filtering solutions.
Replacement Considerations
Check for direct substitutes within the TYT series with identical 50A ratings and 480VAC specifications. Verify that any alternative part maintains the same terminal block termination style and chassis mounting footprint to ensure mechanical compatibility without redesigning the enclosure.
