510CBA33M3300CAGR

Oscillators Overview

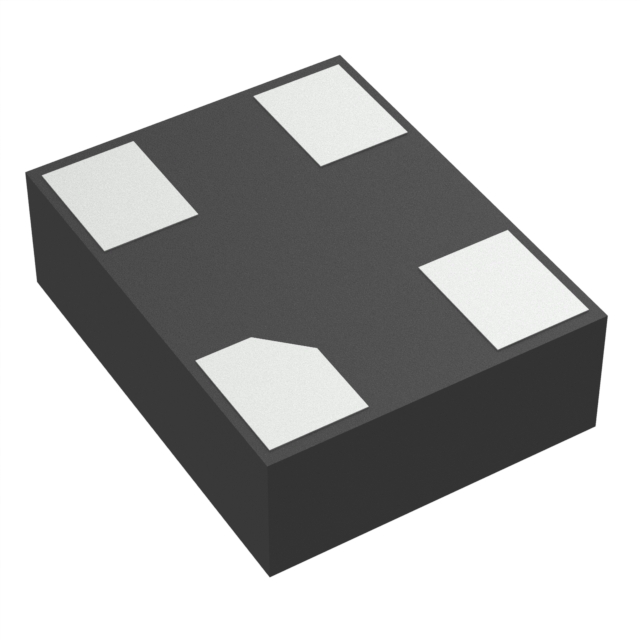

The Skyworks Solutions Inc. 510CBA33M3300CAGR is a standard clock oscillator from the Si510 series, designed for general-purpose applications. It operates at a frequency of 33.33 MHz with CMOS output format and ±20 ppm stability. The device supports a supply voltage range of 2.97 V to 3.63 V, typically 3.3 V, and features an enable/disable function. Packaged in a compact 4-SMD, no-lead (3.2 mm x 2.5 mm) surface-mount case, it functions within a temperature range of -40°C to +85°C.

Oscillators Feature Summary

• Integrated enable/disable control functionality
• CMOS output signal format
• Compact 4-SMD surface-mount package

Oscillators Applications

• General-purpose clock generation
• Digital system timing references
• Embedded electronics design

Oscillators Procurement Notes

Verify the specific suffix 'CAGR' against official Skyworks documentation to confirm reel packaging and lead-free status. Ensure the 3.2x2.5mm footprint matches the target PCB layout. Cross-reference the datasheet for exact electrical tolerances before finalizing component selection.

Oscillators Selection Notes

Select this model when a 33.33 MHz CMOS clock source is required in a small form factor. The Si510 series offers flexibility in voltage and package size. Confirm that the ±20 ppm stability meets the system's jitter and timing requirements compared to other available options.

Oscillators Part Context

This component belongs to the Skyworks Si510 family of single-frequency oscillators. These devices are engineered to provide precise timing solutions for various digital circuits. The series supports multiple frequencies and packages, allowing designers to optimize board space and power consumption effectively.

Oscillators Replacement Considerations

The 510CBA33M3300CAG is a parameter-equivalent alternative without the reel suffix. Verify package compatibility and electrical specifications before substitution.
