5130BP18U4060001E

Overview

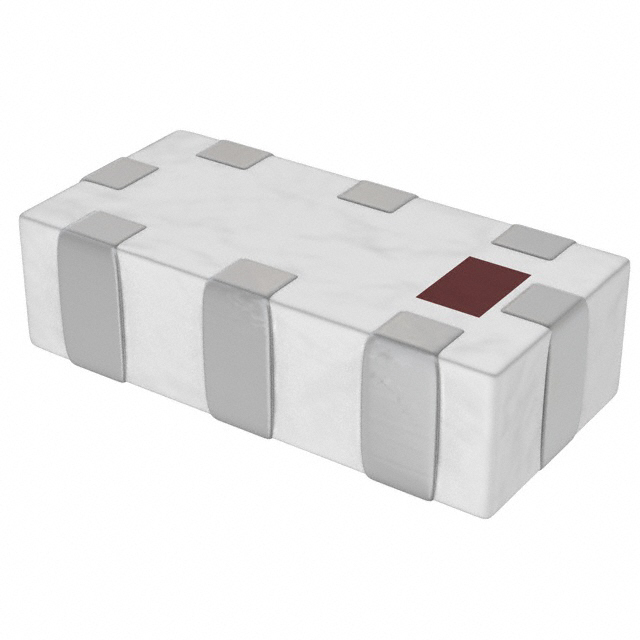

The Johanson Technology 5130BP18U4060001E is a surface-mount bandpass filter designed for ultra-wideband applications. It operates within a frequency range of 3100 MHz to 7160 MHz, providing a bandwidth of approximately 4.06 GHz centered around 5.13 GHz. The component features a maximum insertion loss of 1.6 dB and a minimum return loss of 9.5 dB. It is housed in a compact 0603 (1608 metric) package with SMD/SMT termination, suitable for board mounting in high-frequency RF circuits.

Feature Summary

• Ultra-wideband signal filtering capability across the 3.1 GHz to 7.16 GHz spectrum
• Low insertion loss performance for efficient signal transmission
• Compact 0603 surface-mount package design for space-constrained layouts

Applications

• Ultra-wideband (UWB) communication systems
• Wi-Fi 6E and Wi-Fi 7 devices operating in the 6 GHz band
• High-speed data transfer interfaces requiring wide bandwidth filtering

Procurement Notes

Verify the specific suffix '0001E' against official Johanson Technology documentation to confirm current manufacturing status and exact electrical tolerances. Ensure compatibility with standard 0603 footprint dimensions during PCB layout. Cross-reference datasheet revision history for any parameter updates prior to final procurement authorization.

Selection Notes

Select this component when designing circuits requiring simultaneous filtering across the UWB and 6 GHz Wi-Fi bands. The 0603 form factor supports dense assembly processes. Confirm that the 1.6 dB insertion loss meets system link budget requirements. Validate thermal stability and impedance matching characteristics against the target application's RF chain specifications.

Part Context

This part belongs to Johanson Technology's BP series of ceramic bandpass filters. These components are engineered for high-frequency signal conditioning in modern wireless infrastructure. The 5130BP18U4060001E specifically addresses the growing demand for multi-band support in next-generation wireless standards, replacing discrete filter solutions with integrated monolithic structures.

Replacement Considerations

Legacy part number 5130BP18U4060 may serve as a reference, but verify if the '0001E' suffix denotes updated packaging or material specifications. No direct cross-manufacturer substitutes are confirmed in public documentation; consult manufacturer guidelines for approved equivalents.
