517N19220CTR

Oscillators Overview

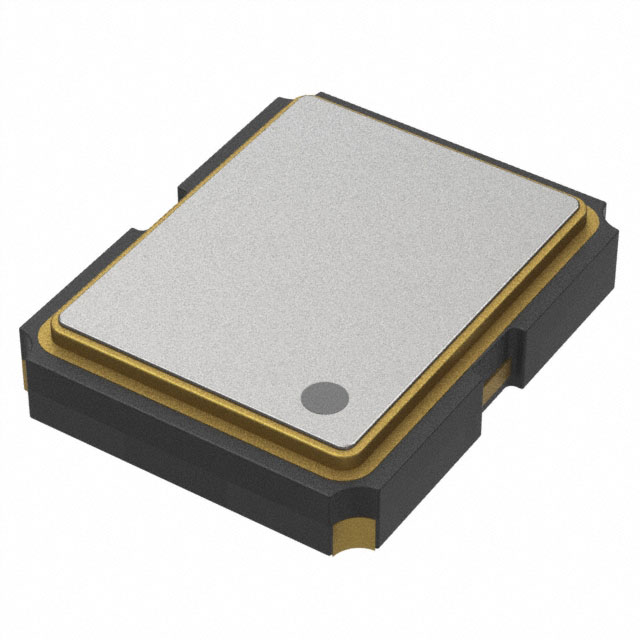

The CTS-Frequency Controls 517N19220CTR is a temperature-compensated crystal oscillator (TCXO) operating at 19.2 MHz with HCMOS output. It features ±2 ppm frequency stability and operates on a 2.5V supply. The device is housed in a compact 2.0mm x 1.6mm surface-mount package, suitable for space-constrained designs.

Oscillators Feature Summary

• Temperature compensation ensures stable frequency performance across industrial ranges
• Compact surface-mount footprint minimizes board space requirements
• HCMOS output interface provides digital compatibility

Oscillators Applications

• Telecommunications base stations
• Industrial control systems
• Automotive electronics

Oscillators Procurement Notes

Verify the specific ordering suffix to confirm voltage and output type. Confirm RoHS compliance status for environmental regulations. Check lead times as manufacturing schedules may vary. Ensure the component matches the required frequency tolerance for the target application.

Oscillators Selection Notes

Select this model when high stability is required in a small form factor. Consider the 2.5V supply constraint against system power rails. Evaluate thermal management needs given the TCXO architecture. Compare size constraints against alternative packages if space is critical.

Oscillators Part Context

This component belongs to the 517 series of miniature TCXOs from CTS-Frequency Controls. The series focuses on providing precise timing solutions for applications requiring stability without the bulk of larger oscillators. It represents a specialized segment of clock generation devices.

Oscillators Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
