52025-09-0100-01 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists CNC Tech. Its product description is WIRE-TO BOARD WAFER, 2.5MM, 9 CO. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for 52025-09-0100-01
- Description：WIRE-TO BOARD WAFER, 2.5MM, 9 CO
- Series：-
- Mfr：CNC Tech
- Package：Bag
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.098" (2.50mm)
- Number of Positions：9
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Detent Lock
- Contact Length - Mating：-
- Contact Length - Post：0.138" (3.50mm)
- Overall Contact Length：-
- Insulation Height：0.232" (5.90mm)
- Contact Shape：Circular
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：-
- Contact Finish - Post：Tin
- Contact Material：Brass
- Insulation Material：Polyamide (PA66), Nylon 6/6
- Features：-
- Operating Temperature：-40°C ~ 85°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Beige
- Current Rating (Amps)：3A
- Voltage Rating：250V
Headers, Male Pins datasheet and documents for 52025-09-0100-01
Headers, Male Pins Overview

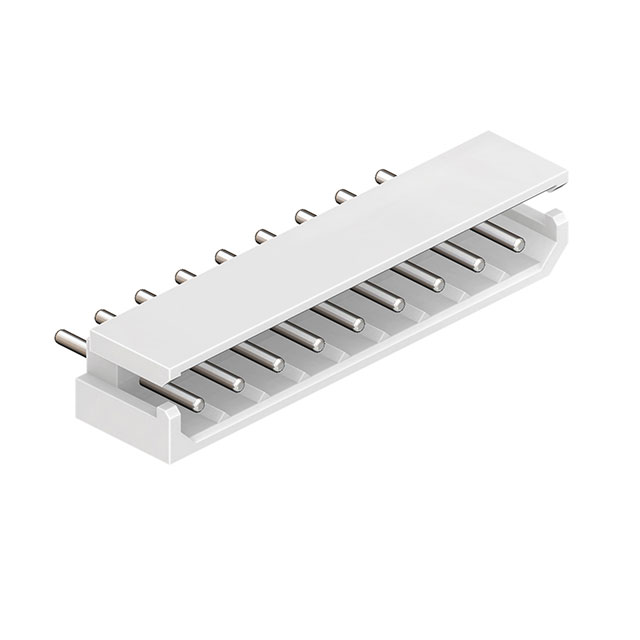

The CnC Tech 52025-09-0100-01 is a shrouded header connector featuring a straight top-entry configuration with nine positions. It utilizes a 2.5mm pitch and is designed for through-hole mounting on printed circuit boards. The component supports a voltage rating of 250V and a current rating of 3A. The contacts are tin-plated to ensure reliable conductivity, while the housing provides structural integrity for wire-to-board applications.
Headers, Male Pins Feature Summary
- Shrouded design prevents incorrect mating
- Straight top-entry orientation for efficient board layout
- Tin-plated contacts for corrosion resistance
Headers, Male Pins Applications
- Wire-to-board interconnections in industrial electronics
- Control panel signal routing
- Consumer appliance internal wiring
Headers, Male Pins Procurement Notes
Verify that the specific part number matches the required pin count and pitch before ordering. Confirm that the through-hole mounting style aligns with the target PCB footprint. Ensure the operating environment does not exceed the specified voltage and current limits to maintain safety compliance.
Headers, Male Pins Selection Notes
Select this component when a compact, high-density connection is needed for low-power signals. The shrouded housing offers protection against accidental contact during assembly. Consider the straight profile for space-constrained vertical installations where side-entry headers would interfere with adjacent components.
Headers, Male Pins Part Context
This connector belongs to the M Series from CnC Tech, which focuses on industrial cable and connector technology. The series emphasizes robust construction for demanding environments. The 2.5mm pitch allows for dense packing of connections within limited board areas.
Headers, Male Pins Replacement Considerations
Direct substitutes must match the 9-position count, 2.5mm pitch, and shrouded header form factor. Verify compatibility with existing PCB footprints and mating wire gauges before swapping manufacturers.
