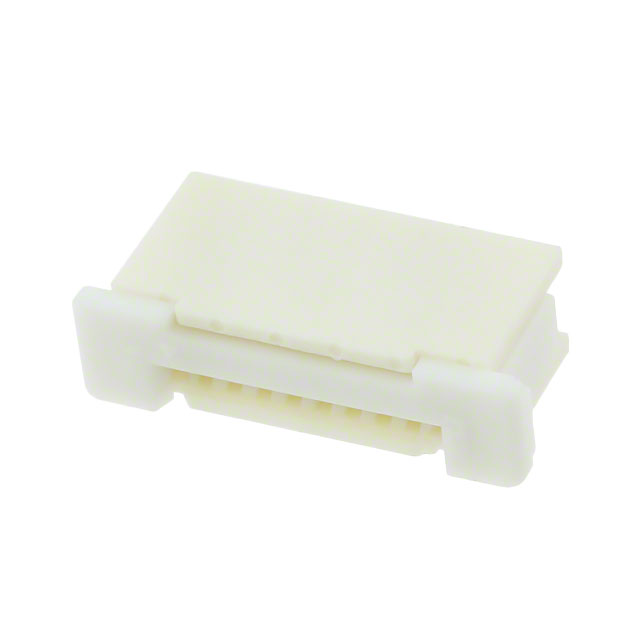

FFC, FPC (Flat Flexible) Connector Assemblies 520430819 product image

520430819

Description：CONN FPC BOTTOM 8POS 1MM R/A
Series：52043
Mfr：Molex
Package：Tray

SKU:0bd2196be392 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

520430819 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FPC BOTTOM 8POS 1MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 520430819

Description：CONN FPC BOTTOM 8POS 1MM R/A
Series：52043
Mfr：Molex
Package：Tray
Flat Flex Type：FPC
Mounting Type：Through Hole, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：8
Pitch：0.039" (1.00mm)
Termination：Kinked Pin
FFC, FCB Thickness：0.30mm
Height Above Board：0.165" (4.20mm)
Locking Feature：Slide Lock
Cable End Type：Tapered
Contact Material：Phosphor Bronze
Contact Finish：Tin Bismuth
Housing Material：Polyamide (PA66), Nylon 6/6
Actuator Material：Polyester
Features：Zero Insertion Force (ZIF)
Voltage Rating：50V
Operating Temperature：-20°C ~ 80°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 520430819

520430819
