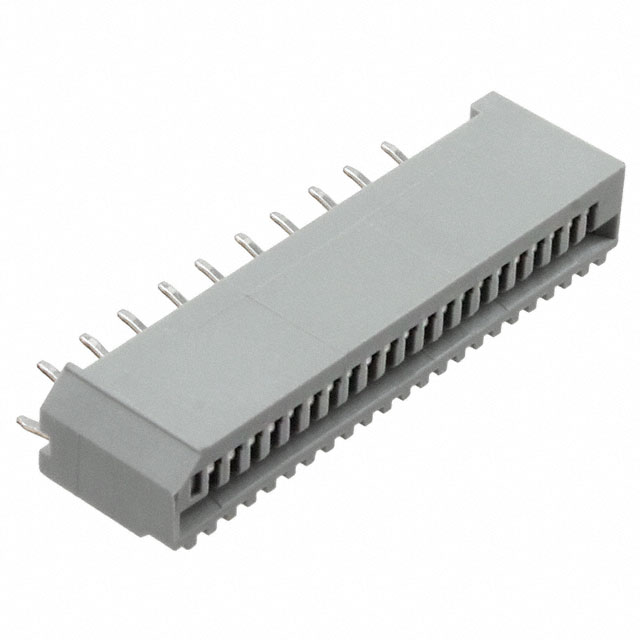

FFC, FPC (Flat Flexible) Connector Assemblies 520452145 product image

520452145

Description：CONN FFC VERT 21POS 1.25MM PCB
Series：52045
Mfr：Molex
Package：Tray

SKU:66e5abfbf8b5 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

520452145 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FFC VERT 21POS 1.25MM PCB. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 520452145

Description：CONN FFC VERT 21POS 1.25MM PCB
Series：52045
Mfr：Molex
Package：Tray
Flat Flex Type：FFC, FPC
Mounting Type：Through Hole
Connector/Contact Type：Contacts, Vertical - 1 Sided
Number of Positions：21
Pitch：0.049" (1.25mm)
Termination：Kinked Pin
FFC, FCB Thickness：0.30mm
Height Above Board：0.315" (8.00mm)
Locking Feature：-
Cable End Type：Straight
Contact Material：Phosphor Bronze
Contact Finish：Tin
Housing Material：Polybutylene Terephthalate (PBT), Polyester
Actuator Material：-
Features：-
Voltage Rating：200V
Operating Temperature：-40°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 520452145

520452145
