524265-E

Headers, Male Pins Overview

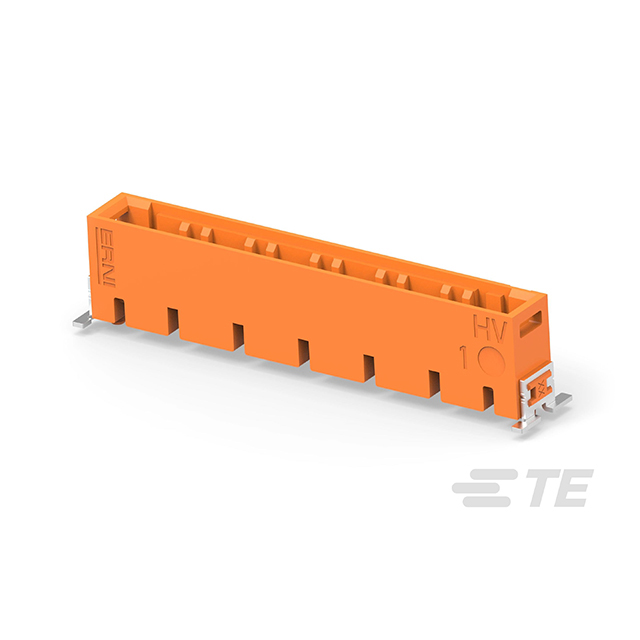

The TE Connectivity Erni 524265-E is a 6-position header connector from the MaxiBridgeQT series. It features a 6.20 mm (0.244 inch) pitch and is designed for vertical surface mount installation. The component utilizes male pin contacts and is intended for cable-to-board connections. The housing is orange, and the unit is packaged in tape-and-reel format for automated assembly processes.

Headers, Male Pins Feature Summary

• Vertical surface mount design for direct PCB integration
• Male pin contact configuration for secure mating
• Orange housing color for visual identification

Headers, Male Pins Applications

• Cable-to-board interconnects
• Surface mount electronic assemblies
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix and revision level against the official manufacturer datasheet to ensure compatibility with current production requirements. Confirm that the surface mount footprint matches the target PCB layout. Check for any recent product change notifications or end-of-life notices issued by TE Connectivity / ERNI prior to finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a vertical, surface-mount header with a 6.20 mm pitch is required. Ensure the application supports SMD technology and that the orange housing color meets visual coding standards. Verify that the male pin configuration aligns with the mating cable or board connector specifications.

Headers, Male Pins Part Context

This part belongs to the MaxiBridgeQT series of connectors manufactured by TE Connectivity / ERNI. The series is characterized by robust construction suitable for demanding environments. The 524265-E specifically denotes the 6-position variant within this family, distinguished by its unique pitch and mounting style compared to other positions or series members.

Headers, Male Pins Replacement Considerations

• 364212-E
