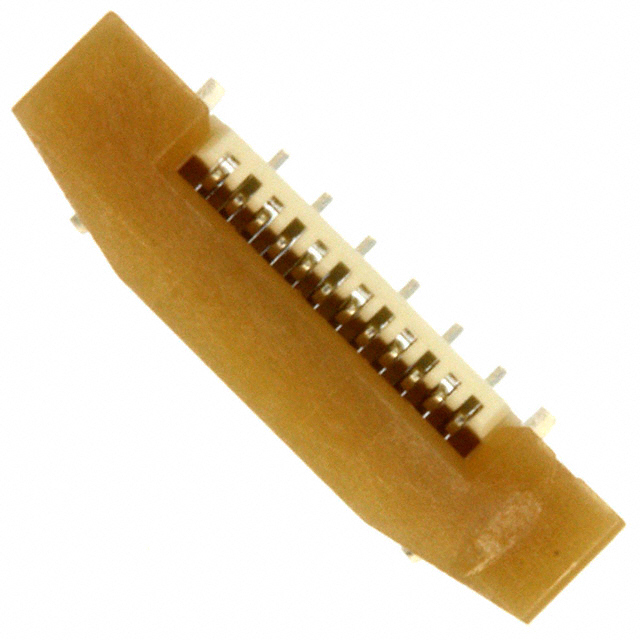

FFC, FPC (Flat Flexible) Connector Assemblies 525591272 product image

525591272

$1.26

Description：CONN FFC VERT 12POS 0.5MM SMD
Series：Easy-On 52559
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:d8b1951480c9 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

525591272 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FFC VERT 12POS 0.5MM SMD. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 525591272

Description：CONN FFC VERT 12POS 0.5MM SMD
Series：Easy-On 52559
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount
Connector/Contact Type：Contacts, Vertical - 1 Sided
Number of Positions：12
Pitch：0.020" (0.50mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.154" (3.90mm)
Locking Feature：Slide Lock
Cable End Type：Straight, Tapered
Contact Material：Phosphor Bronze
Contact Finish：Tin Bismuth
Housing Material：Polyamide (PA46), Nylon 4/6
Actuator Material：Polyphenylene Sulfide (PPS)
Features：Zero Insertion Force (ZIF)
Voltage Rating：50V
Operating Temperature：-40°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 525591272

525591272
