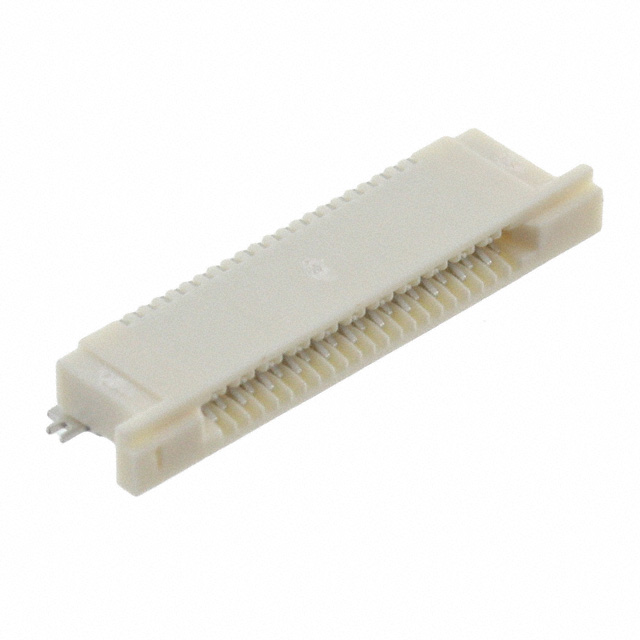

FFC, FPC (Flat Flexible) Connector Assemblies 526892287 product image

526892287

$1.59

Description：CONN FFC FPC 22POS 0.5MM R/A
Series：52689
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT),Bulk

SKU:15a831c045b2 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

526892287 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FFC FPC 22POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 526892287

Description：CONN FFC FPC 22POS 0.5MM R/A
Series：52689
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT),Bulk
Flat Flex Type：FFC, FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Top and Bottom
Number of Positions：22
Pitch：0.020" (0.50mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.079" (2.00mm)
Locking Feature：-
Cable End Type：Straight, Tapered
Contact Material：Phosphor Bronze
Contact Finish：Tin Bismuth
Housing Material：Polyamide (PA46), Nylon 4/6
Actuator Material：-
Features：Solder Retention
Voltage Rating：50V
Operating Temperature：-20°C ~ 85°C
Material Flammability Rating：UL94 V-0

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 526892287

526892287
