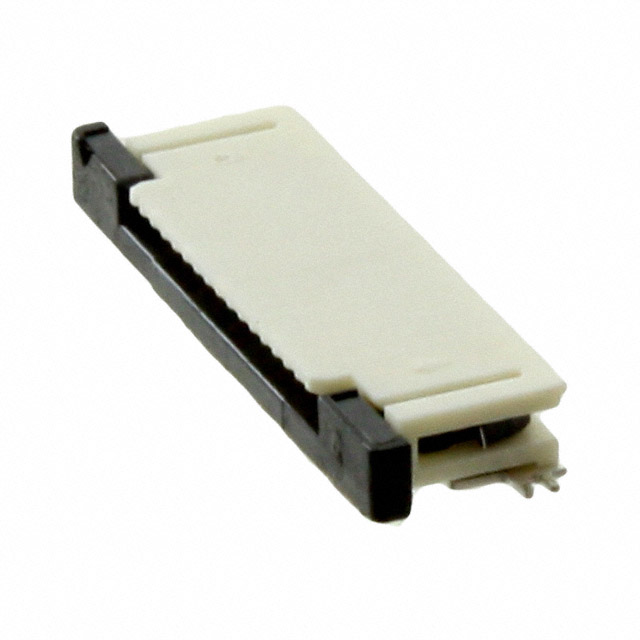

FFC, FPC (Flat Flexible) Connector Assemblies 527451697 product image

527451697

$1.24

Description：CONN TOP 16POS 0.5MM R/A
Series：Easy-On 52745
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a8cc49f866d6 Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

527451697 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN TOP 16POS 0.5MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 527451697

Description：CONN TOP 16POS 0.5MM R/A
Series：Easy-On 52745
Mfr：Molex
Package：Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type：-
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Top
Number of Positions：16
Pitch：0.020" (0.50mm)
Termination：Solder
FFC, FCB Thickness：0.30mm
Height Above Board：0.079" (2.00mm)
Locking Feature：Slide Lock
Cable End Type：Straight
Contact Material：Phosphor Bronze
Contact Finish：Gold
Housing Material：Polyamide (PA46), Nylon 4/6, Glass Filled
Actuator Material：-
Features：Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating：50V
Operating Temperature：-20°C ~ 85°C
Material Flammability Rating：-

FFC, FPC (Flat Flexible) Connector Assemblies datasheet and documents for 527451697
