Headers, Male Pins Overview

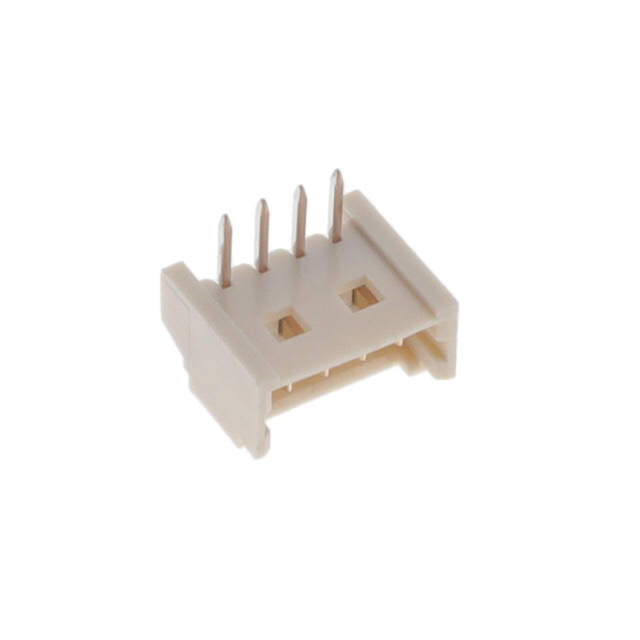

The Molex 53048-0450 is a PicoBlade series connector header designed for through-hole mounting. It features a right-angle configuration with four positions and a 1.25mm (0.049 inch) pitch. The component utilizes male pin contacts to establish wire-to-board connections within electronic assemblies.

Headers, Male Pins Feature Summary

• Right-angle PCB mounting orientation
• Through-hole termination method
• Four-position contact array

Headers, Male Pins Applications

• Wire-to-board interconnects
• Electronic assembly integration
• PCB header applications

Headers, Male Pins Procurement Notes

Verify the exact part number against official Molex documentation to ensure compatibility with specific housing requirements. Confirm that the through-hole footprint matches the target PCB design. Check for any updated series revisions or alternative packaging options available from authorized distributors before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for dense board layouts. Ensure the mating housing supports the 1.25mm pitch specification. Validate that the current carrying capacity of the male pins meets the circuit requirements for the intended application environment.

Headers, Male Pins Part Context

This part belongs to the Molex PicoBlade family, which provides compact connectivity solutions. The series includes various housing and terminal options compatible with this header. It is engineered for high-density applications where space constraints necessitate small form factor connectors.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are identified in the provided source material.
