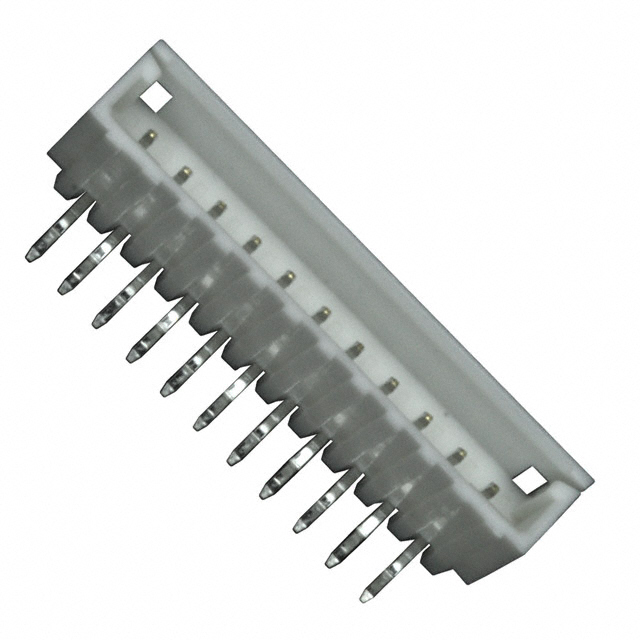

533251160

533251160 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Molex. Its product description is CONN HEADER R/A 11POS 2MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 533251160

• Description：CONN HEADER R/A 11POS 2MM
• Series：Mi II 53325
• Mfr：Molex
• Package：Tray
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.079" (2.00mm)
• Number of Positions：11
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Cable/Wire
• Shrouding：Shrouded - 4 Wall
• Mounting Type：Through Hole, Right Angle
• Termination：Kinked Pin, Solder
• Fastening Type：Detent Lock
• Contact Length - Mating：0.136" (3.45mm)
• Contact Length - Post：0.138" (3.50mm)
• Overall Contact Length：-
• Insulation Height：0.191" (4.85mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：-
• Contact Finish - Post：Tin
• Contact Material：Brass
• Insulation Material：Polybutylene Terephthalate (PBT), Glass Filled
• Features：-
• Operating Temperature：-
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Natural
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 533251160
