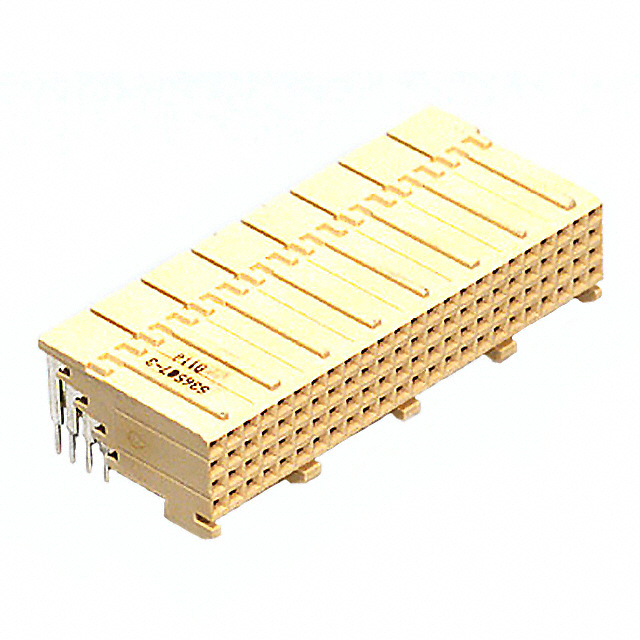

Specialized Backplane Connectors 536507-3 product image

536507-3

Description：CONN RCPT FUTUREBUS 96P EDGE MNT
Series：Z-PACK
Mfr：TE Connectivity AMP Connectors
Package：Tube

SKU:c493f391636d Category: Specialized Backplane Connectors Brand: TE Connectivity AMP Connectors

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

536507-3 is listed in the Specialized Backplane Connectors range at ChipApex. The manufacturer field lists TE Connectivity AMP Connectors. Its product description is CONN RCPT FUTUREBUS 96P EDGE MNT. Review the specifications below when checking this part for your BOM.

Specialized Backplane Connectors specifications for 536507-3

Description：CONN RCPT FUTUREBUS 96P EDGE MNT
Series：Z-PACK
Mfr：TE Connectivity AMP Connectors
Package：Tube
Connector Usage：-
Connector Type：Receptacle, Female Sockets
Connector Style：Futurebus
Number of Positions：96
Number of Positions Loaded：All
Pitch：0.079" (2.00mm)
Number of Rows：4
Number of Columns：-
Mounting Type：Board Edge, Through Hole, Right Angle
Termination：Solder
Contact Layout, Typical：-
Features：Board Guide, Spacer
Contact Finish：Gold
Contact Finish Thickness：-
Color：Natural

Specialized Backplane Connectors datasheet and documents for 536507-3

536507-3
