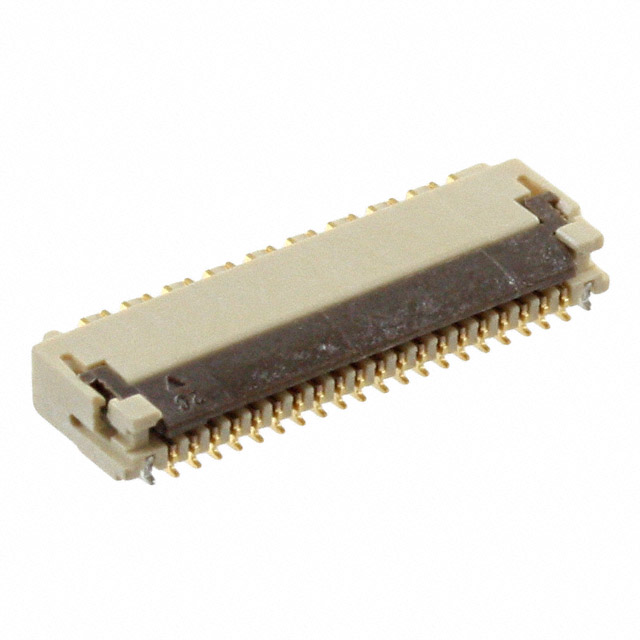

FFC, FPC (Flat Flexible) Connector Assemblies 543933981 product image

543933981

$1.40

Description：CONN FPC BOTTOM 39POS 0.3MM R/A
Series：Easy-On 54393
Mfr：Molex
Package：Tape & Reel (TR)

SKU:7de8dbf9d2ad Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

543933981 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FPC BOTTOM 39POS 0.3MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 543933981

Description：CONN FPC BOTTOM 39POS 0.3MM R/A
Series：Easy-On 54393
Mfr：Molex
Package：Tape & Reel (TR)
Flat Flex Type：FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：39
Pitch：0.012" (0.30mm)
Termination：Solder
FFC, FCB Thickness：0.20mm
Height Above Board：0.077" (1.95mm)
Locking Feature：Flip Lock
Cable End Type：Tapered
Contact Material：Phosphor Bronze
Contact Finish：Gold
Housing Material：Liquid Crystal Polymer (LCP)
Actuator Material：Polyphenylene Sulfide (PPS)
Features：Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating：50V
Operating Temperature：-20°C ~ 85°C
Material Flammability Rating：UL94 V-0
