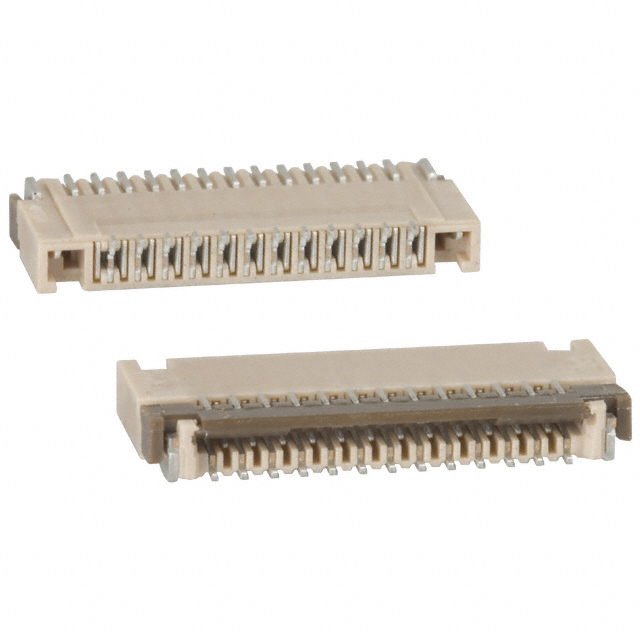

FFC, FPC (Flat Flexible) Connector Assemblies 548092598 product image

548092598

$1.21

Description：CONN FPC BOTTOM 25POS 0.3MM R/A
Series：Easy-On 54809
Mfr：Molex
Package：Bulk

SKU:4c30f6404feb Category: FFC, FPC (Flat Flexible) Connector Assemblies Brand: Molex

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

548092598 is listed in the FFC, FPC (Flat Flexible) Connector Assemblies range at ChipApex. The manufacturer field lists Molex. Its product description is CONN FPC BOTTOM 25POS 0.3MM R/A. Review the specifications below when checking this part for your BOM.

FFC, FPC (Flat Flexible) Connector Assemblies specifications for 548092598

Description：CONN FPC BOTTOM 25POS 0.3MM R/A
Series：Easy-On 54809
Mfr：Molex
Package：Bulk
Flat Flex Type：FPC
Mounting Type：Surface Mount, Right Angle
Connector/Contact Type：Contacts, Bottom
Number of Positions：25
Pitch：0.012" (0.30mm)
Termination：Solder
FFC, FCB Thickness：0.20mm
Height Above Board：0.051" (1.30mm)
Locking Feature：Flip Lock
Cable End Type：Tapered
Contact Material：Phosphor Bronze
Contact Finish：Tin Bismuth
Housing Material：Liquid Crystal Polymer (LCP)
Actuator Material：Polyamide (PA46), Nylon 4/6
Features：Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating：50V
Operating Temperature：-20°C ~ 85°C
Material Flammability Rating：UL94 V-0
