5500.0255.1

Overview

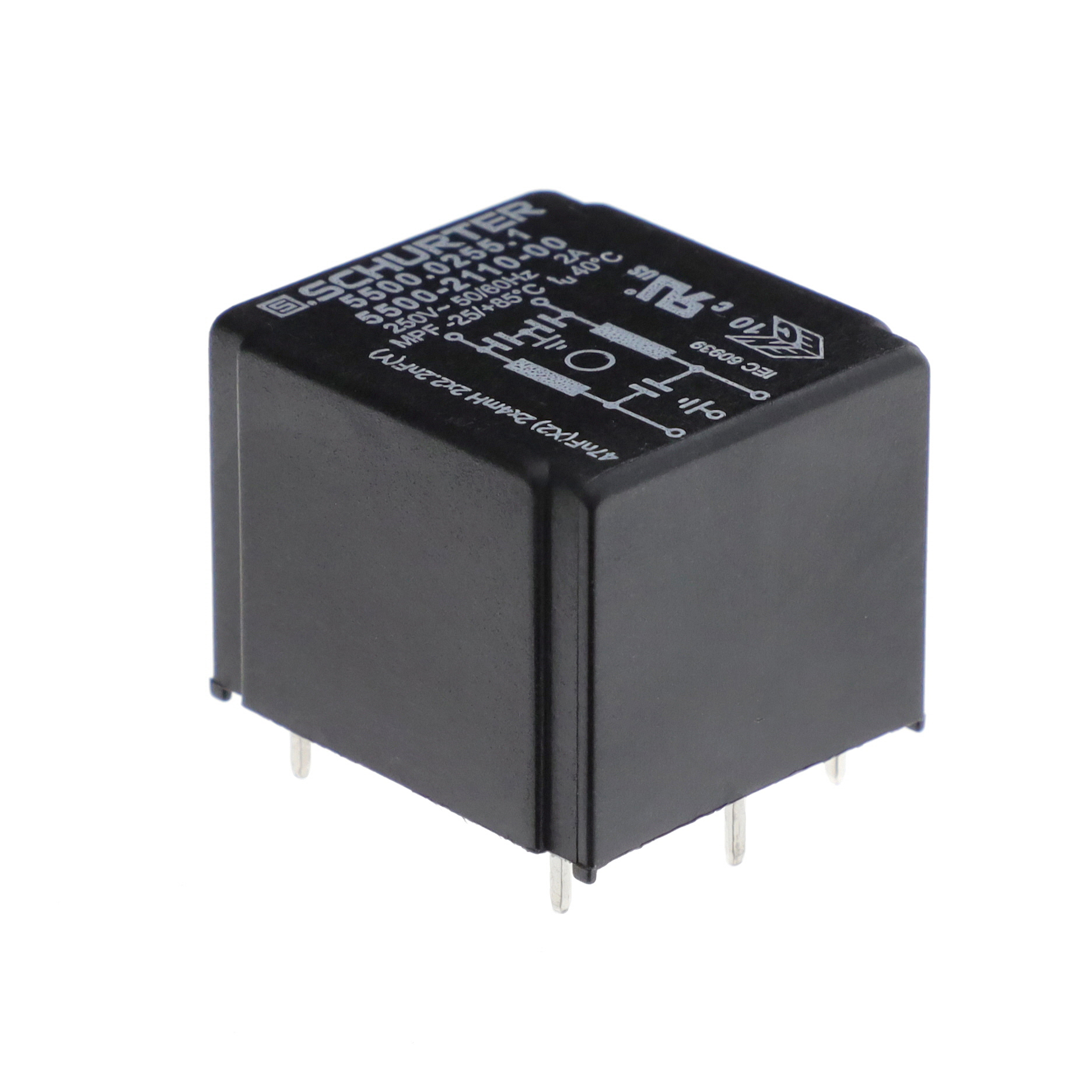

The Schurter 5500.0255.1 is a single-phase, single-stage EMI/EMC power line filter designed for PCB mounting. It features a rated AC voltage of 125 VAC and 250 VAC with an operating frequency of 50 Hz or 60 Hz. The component supports a current rating of 2 A and utilizes PC pin termination for secure board integration.

Feature Summary

• Single-stage filtering configuration for effective noise suppression
• PCB mounting design with PC pin termination
• Dual voltage rating capability for versatile application

Applications

• Electronic equipment requiring EMI suppression
• Power supply input stages
• Consumer electronics internal circuits

Procurement Notes

Verify the specific datasheet version to confirm exact leakage current and insertion loss characteristics. Ensure the PCB footprint matches the PC pin spacing. Confirm RoHS compliance status through official manufacturer documentation before finalizing procurement specifications.

Selection Notes

Select this component when a compact, single-stage solution is required for low-current applications up to 2 A. The dual voltage rating allows flexibility in systems operating at either 125 VAC or 250 VAC. Verify that the PCB mounting style aligns with the assembly process requirements.

Part Context

This part belongs to the Schurter AC Filter series, specifically designed for PCB mounting. It serves as an EMC/EMI line filter module, providing essential noise reduction for sensitive electronic circuits in single-phase power environments.

Replacement Considerations

No publicly confirmed substitute part numbers are available in the provided source material.
