Product Detailed Parameters
- Description：LINE FILTER 125V/250VAC 2A TH
- Series：5500
- Mfr：SCHURTER Inc.
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：125V, 250V
- Current：2:00 AM
- Frequency - Operating：50/60Hz
- Applications：Medical
- Approval Agency：cURus, ENEC, VDE
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Through Hole
- Termination Style：PC Pins
- Inductance：4mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

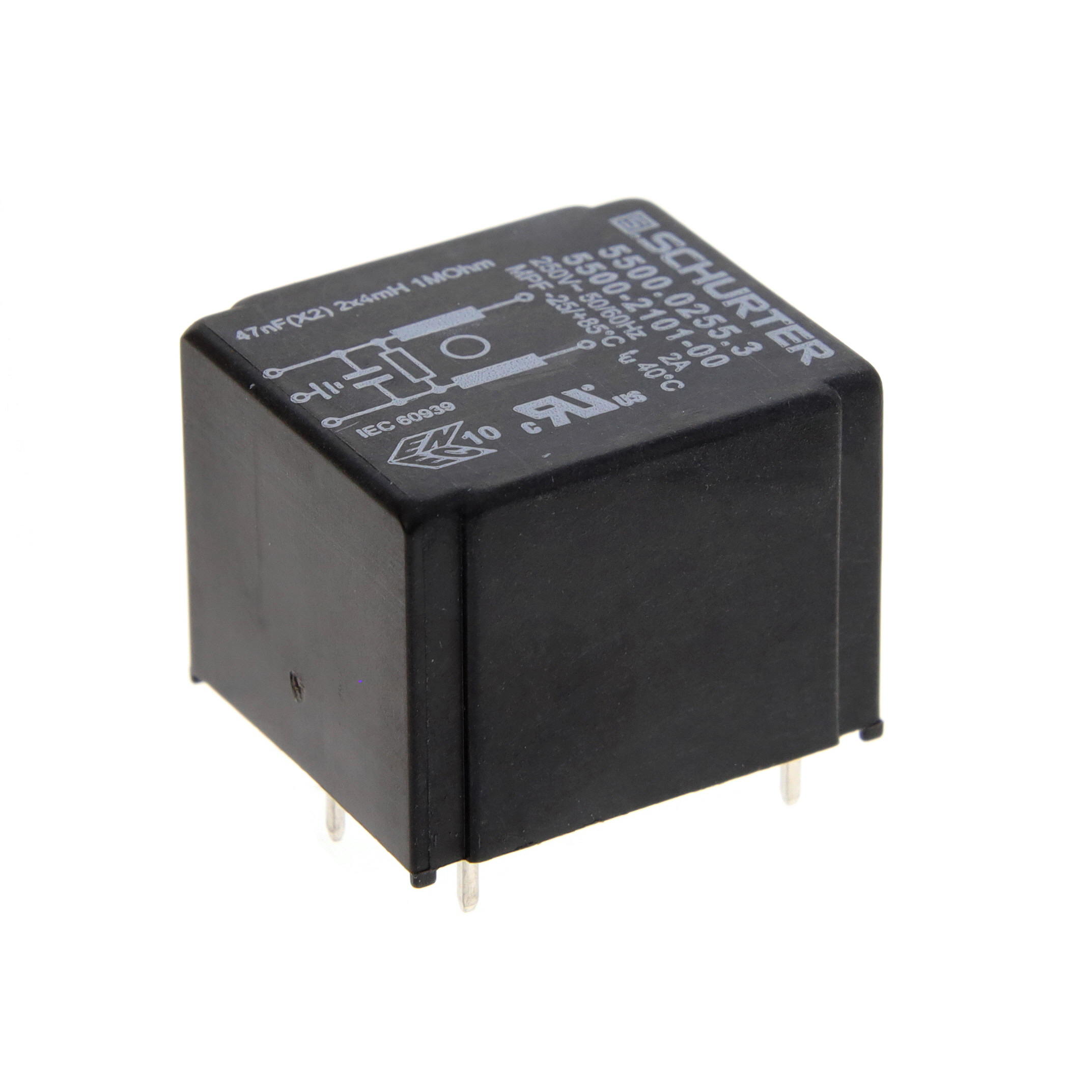

The SCHURTER 5500.0255.3 is a single-phase EMC/EMI line filter designed for through-hole mounting. It supports a rated current of 2 A and operates at voltage ratings of 125 VAC and 250 VAC with a frequency range of 50 Hz to 60 Hz. The component utilizes PC pin termination and features a single-stage filtering architecture. This configuration provides essential noise suppression for sensitive electronic circuits within compact form factors.
Feature Summary
- Single-stage EMI/EMC filtering architecture
- Through-hole PC pin termination for PCB integration
- Dual voltage rating capability (125VAC/250VAC)
- Compact design suitable for space-constrained applications
Applications
- Consumer electronics power supplies
- Information technology equipment input stages
- Industrial control system power inputs
- Medical device power conditioning
Procurement Notes
Verify the specific datasheet revision to confirm mechanical dimensions and compliance certifications prior to implementation. Ensure that the selected PCB footprint matches the PC pin spacing and diameter specifications provided in the official documentation. Confirm thermal management requirements are met for continuous operation at the rated current.
Selection Notes
Select this component when a single-stage solution is sufficient for the required attenuation levels. Compare leakage current limits against safety standards applicable to the end product. Evaluate the physical size constraints against the filter's envelope dimensions to ensure proper clearance and creepage distances on the target printed circuit board.
Part Context
This part belongs to the SCHURTER 5500 series, which encompasses various power line filters. The series offers options ranging from single to multi-stage configurations with different current ratings and termination styles. The 5500.0255.3 specifically addresses low-current applications requiring basic electromagnetic interference reduction via standard through-hole technology.
FAQ
What is the maximum rated current for the 5500.0255.3?
The maximum rated current is 2 Amperes.
Does this filter support both 50 Hz and 60 Hz frequencies?
Yes, the component is rated for operation at both 50 Hz and 60 Hz.
